Teltonika RUT240 Setup Guide

Requirements

To get set up, you will need the following:

• A Soracom account
• A Soracom SIM card
• The Teltonika RUT240 router
• A computer or tablet

SIM Registration

If you have not already done so, take a moment to follow the instructions in the SIM Registration documentation and register your Soracom SIM card to your account.

Hardware Setup

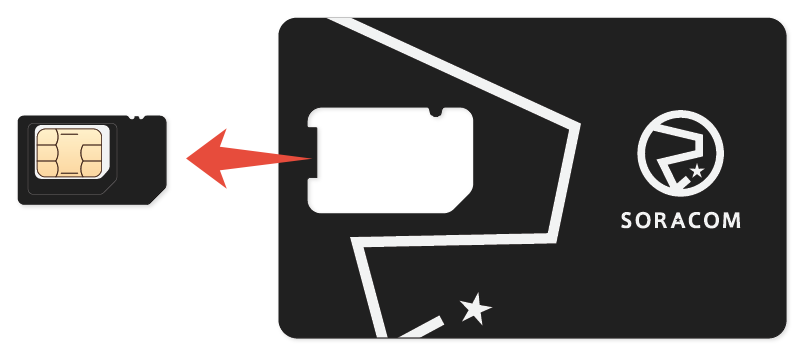

1. Carefully remove the Soracom SIM card from its packaging.



   The plan01s SIM is a 3-in-1 design that allows you to conveniently break out the SIM card into standard/mini (2FF), micro (3FF), and nano (4FF) form factors. As the RUT240 uses the standard/mini (2FF) size, take care to keep the original SIM card size when removing it from its packaging.

   If you have already broken out the SIM card to a smaller size, or if you are using a different Soracom SIM card that has a smaller form factor, you can use a SIM card adapter (sold separately) to change the form factor back to standard/mini (2FF).

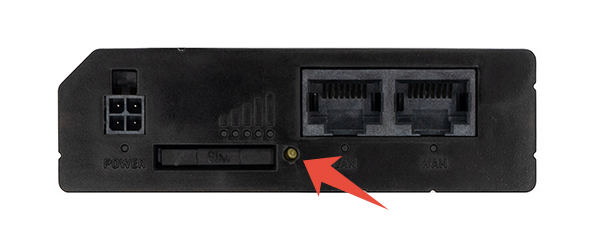

2. Using the SIM eject tool included with your RUT240, depress the SIM eject button in order to release the SIM card tray.



3. Lay the SIM card onto the SIM card tray, paying attention to the orientation notch.

4. Re-insert the SIM card tray into the RUT240.

Your RUT240 is now ready for software configuration. Plug in the RUT240 power adapter and allow it a few minutes to boot.

Software Configuration

To set up the RUT240 to use the Soracom SIM card cellular connection, we just need to configure the Soracom APN settings and let the router search for and connect to a cellular network.

Teltonika provides several ways to access router settings. In this guide, we will use the built-in WebUI configuration, which can be accessed by connecting a computer or tablet to the WiFi network broadcasted by the router, or by connecting to its ethernet port.

1. From a computer or tablet, connect to the WiFi network that is broadcasted by the router. The default WiFi SSID name and password is printed on the back of the router.



2. Open the WebUI configuration screen by visiting http://192.168.1.1 from a web browser.

3. Login to the WebUI using the default username admin and default password admin01.

   When logging in for the first time, you may be asked to change the default administrator password. Follow the instructions to change the password, then continue below.

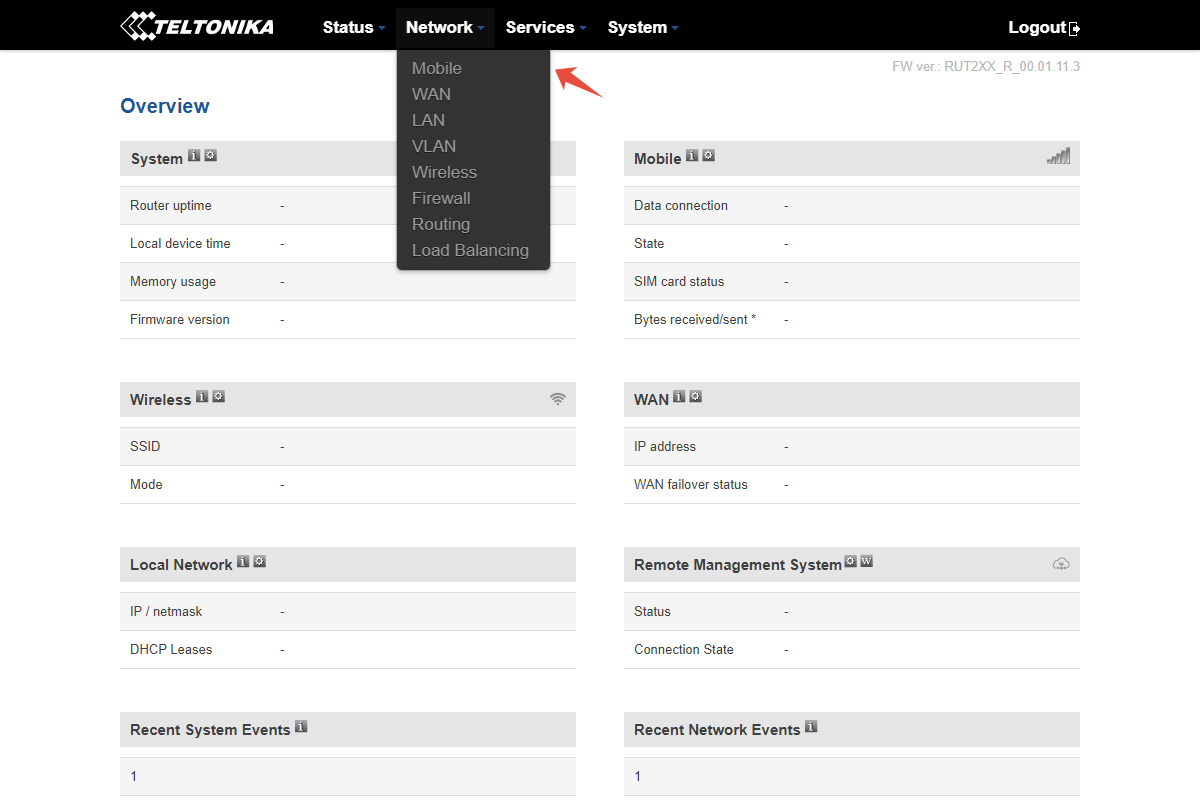

4. Once you are logged in, you will see the main RUT240 status overview page. Click the Network menu, then select Mobile.

   http://192.168.1.1

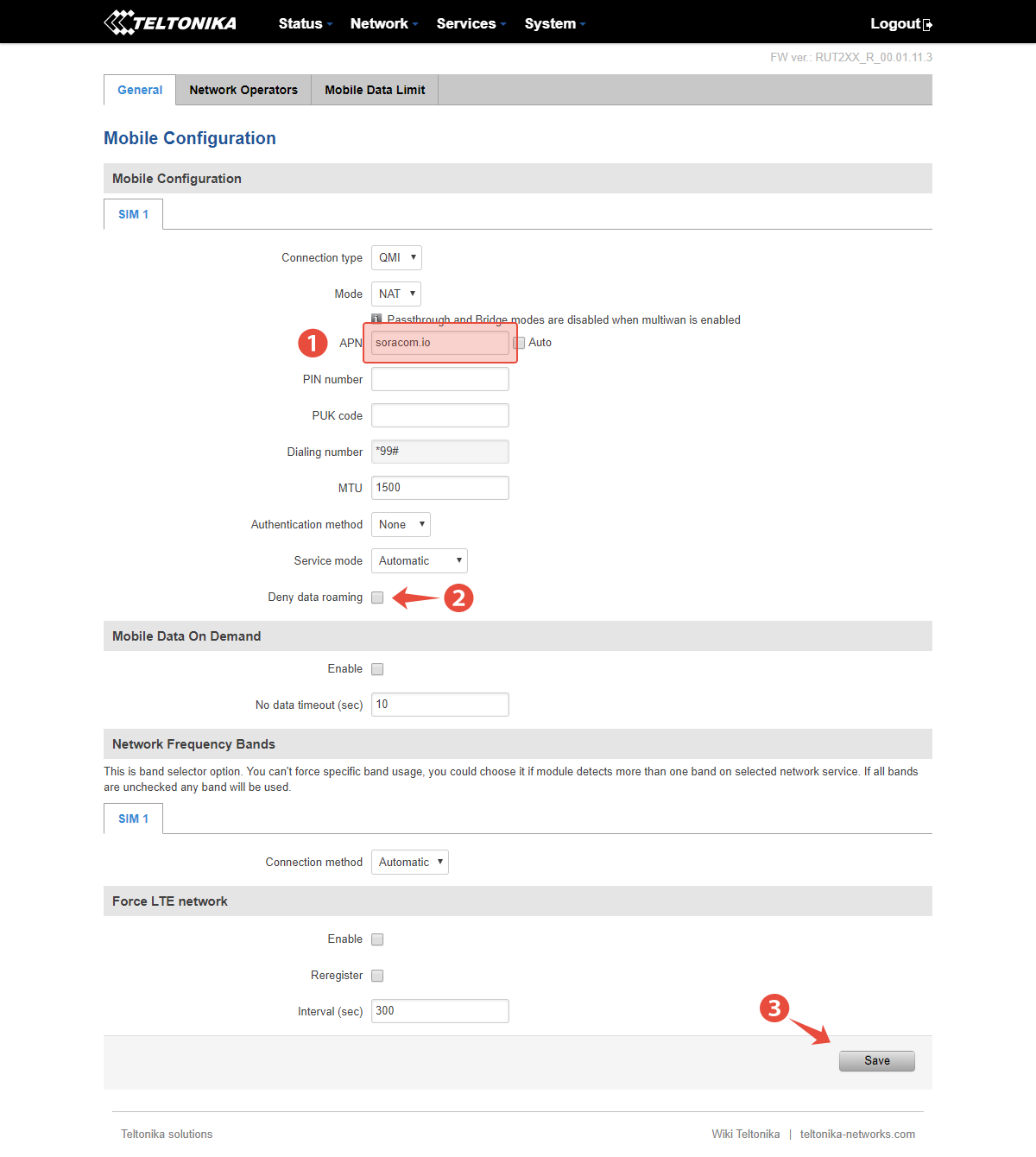

5. Enter the APN setting soracom.io. If the Auto checkbox is selected, you may need to uncheck it in order to enter the APN setting.

   http://192.168.1.1



   Ensure that the Deny data roaming option is also unchecked. You can leave the other settings with their default values.

   Then click the Save button.

The RUT240 will take a minute to save the settings and reload the configuration.

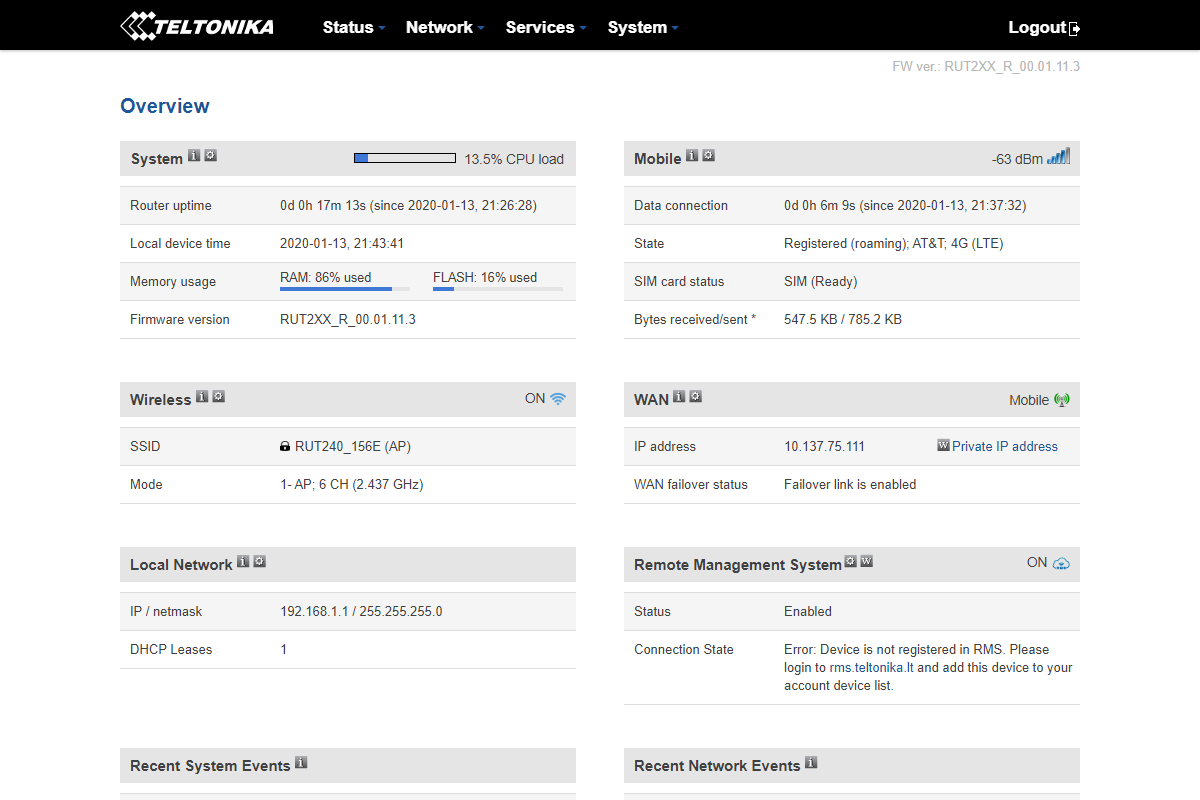

After a few minutes, the router should finish searching for available networks and automatically connect. You can check the cellular connection status by clicking the Status menu and selecting Overview to return to the main screen, and verifying the cellular connection from the Mobile section.

Advanced Configuration

Manual Network Selection

While the RUT240 is intelligent enough to automatically select the best available network, in some situations you may prefer to manually select the cellular network by yourself.

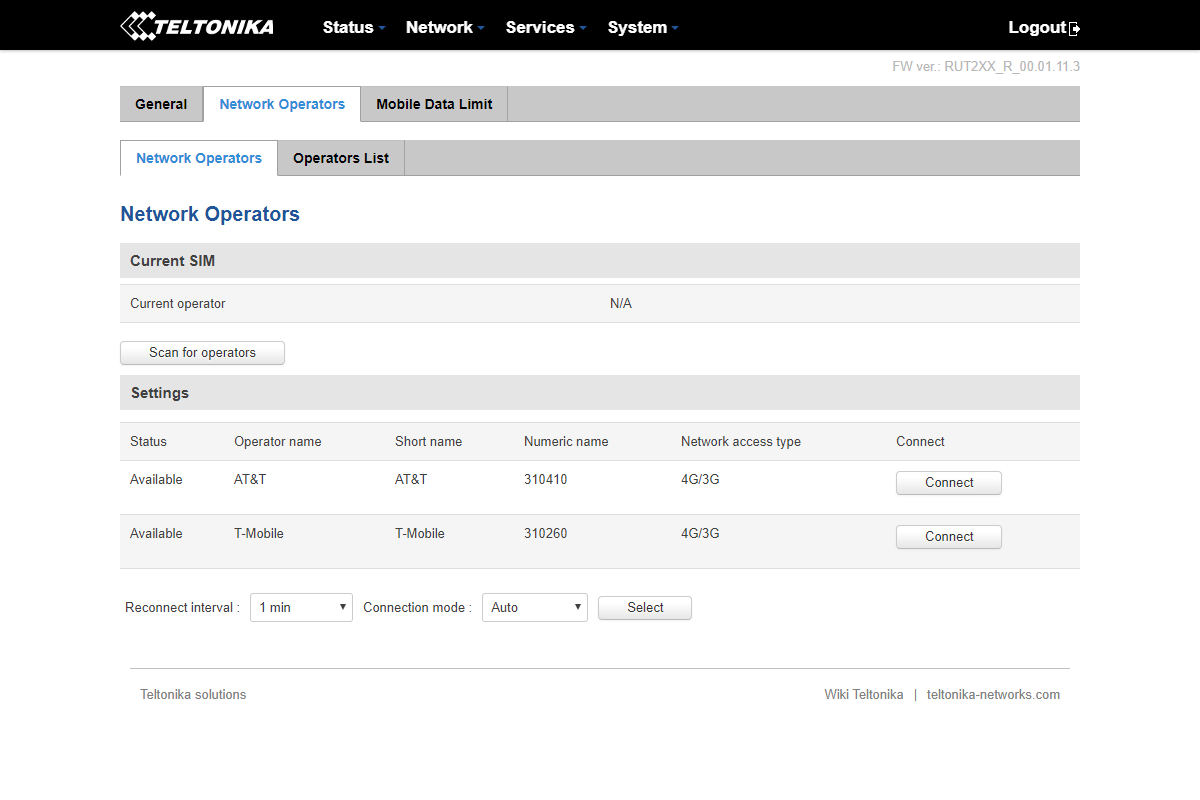

From the Network menu, select Mobile. Then select the Network Operators tab.

From this screen, you can click the Scan for operators button to manually check which cellular networks are available in your area. Once complete, a list of detected networks will be displayed. You can then click the Connect button to manually connect to a specific network.

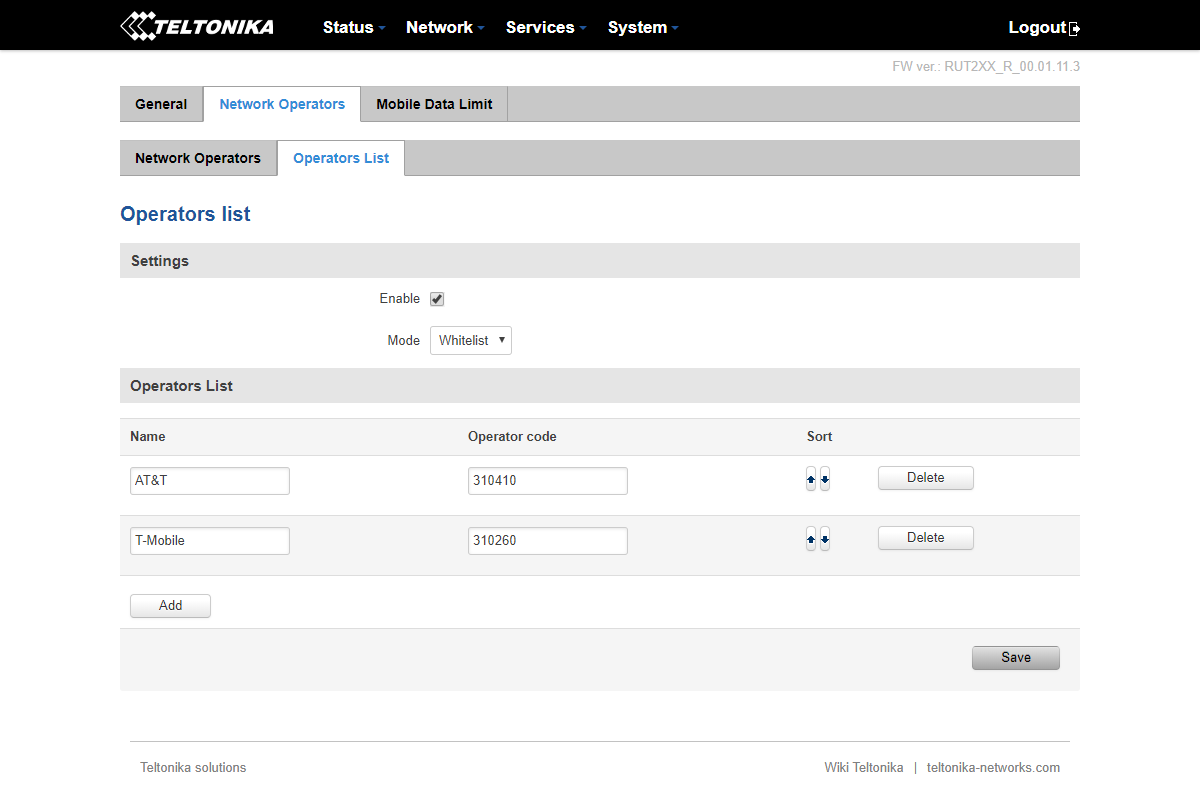

Additionally, if you would like to manually specify which networks the router is allowed to connect to (for example, in order to prevent the router from connecting to a particular network), you can click on the Operators List tab and add/remove networks as needed:
