Soracom Junction

Configuration

Enabling Junction will incur fees. Once enabled, Junction will be billed according to its runtime, regardless of actual usage. Billing will continue until Junction is disabled. Refer to the Pricing & Fee Schedule for more information.

Before enabling Junction, ensure that you have completed the following:

If you want to enable Junction Redirection, you must also complete Gate Peer Configuration .

Then, enable Junction for your VPG:

  1. Login to the User Console. From the Menu, open the VPG screen.

  2. From the list of VPGs, click the name of the VPG you want to configure to open its settings page.

  3. Click the Junction settings tab.

  4. Configure Inspection, Mirroring, or Redirection settings as necessary:

    • SORACOM Junction: Inspection

      Junction Inspection configuration

      1. Enable Inspection by switching the option to ON.
      2. Enter the configuration parameters:
        • Service - The cloud service where packet statistic information will be sent.
        • Destination or Topic - The cloud service endpoint.
        • Credentials set - The credentials to use for this connection. For more information on creating credentials sets see the Credentials Sets documentation.
      3. Click the Save Inspection Settings button.

    • SORACOM Junction: Mirroring

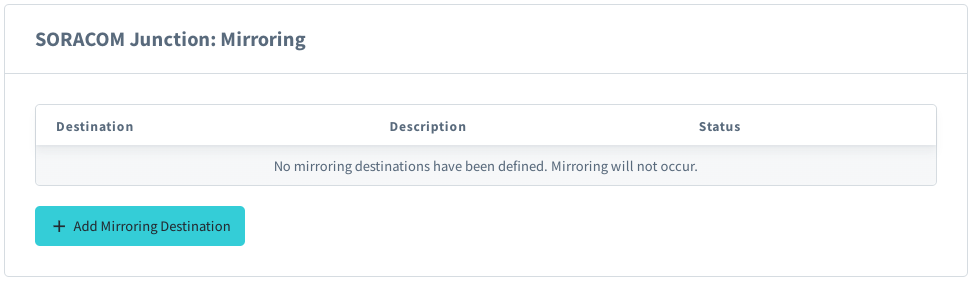

      Junction Mirroring configuration

      1. Click the Add Mirroring Destination button.
      2. Enter the Mirroring destination IP address, and set the Status to ON.
      3. Click the Save button.

    • SORACOM Junction: Redirection

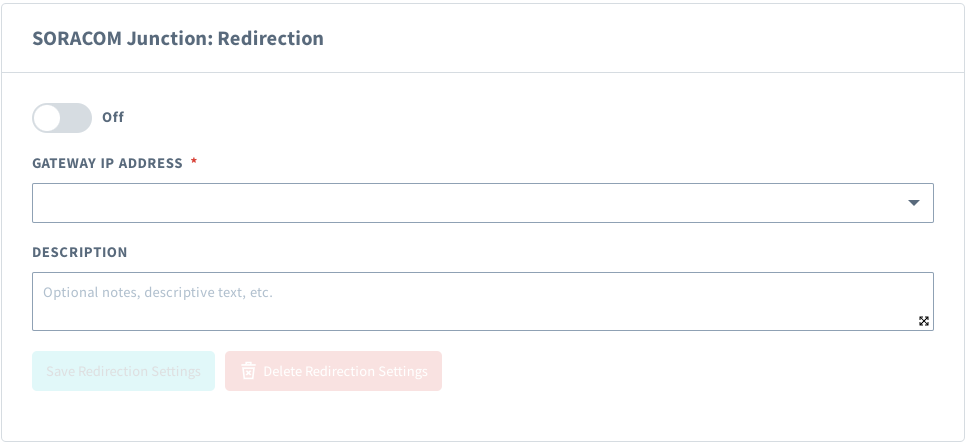

      Junction Redirection configuration

      1. Enable Redirection by switching the option to ON.
      2. Click the Gateway IP address dropdown box and select the IP address that corresponds to your Gate Peer.
      3. Click the Save Redirection Settings button.

Settings will take effect immediately.

Advanced Configuration

Soracom Junction settings can also be configured programmatically using the Soracom API or Soracom CLI. In either case, Inspection, Mirroring, and Redirection configuration is specified in the following JSON formats:

Inspection Configuration Format
{
  "enabled": true,
  "report": {
    "credentialsId": "<CREDENTIAL-SET-ID>",
    "enabled": true,
    "destination": {
      "service": "aws-iot"|"kinesis"|"firehose"|"eventhubs"|"pubsub",
      "provider": "aws"|"azure"|"google",
      "resourceUrl": "<DESTINATION-ADDRESS>"
    }
  }
}
Mirroring Configuration Format
{
  "enabled": true,
  "protocol": "gre",
  "description": "<OPTIONAL-DESCRIPTION>",
  "ipAddress": "<DESTINATION-IP-ADDRESS>"
}
Redirection Configuration Format
{
  "enabled": true,
  "gateway": "<GATE-PEER-INNER-IP-ADDRESS>",
  "description": "<OPTIONAL-DESCRIPTION>"
}

Soracom API

Inspection

To configure Inspection settings, use the setInspectionConfiguration API method:

curl -X POST \
>  -H 'Content-Type: application/json' \
>  -b '{ ... Inspection configuration }' \
>  http://g.api.soracom.io/v1/virtual_private_gateways/<VPG-ID>/junction/set_inspection

You can remove Inspection settings with the unsetInspectionConfiguration method.

Mirroring

To add a mirroring destination, use the createMirroringPeer API method:

curl -X POST \
>  -H 'Content-Type: application/json' \
>  -b '{ ... Mirroring peer configuration }' \
>  http://g.api.soracom.io/v1/virtual_private_gateways/<VPG-ID>/junction/mirroring/peers

You can modify a mirroring peer with the updateMirroringPeer method, and delete a mirroring peer with the deleteMirroringPeer method.

Redirection

To configure Redirection settings, use the setRedirectionConfiguration API method:

curl -X POST \
>  -H 'Content-Type: application/json' \
>  -b '{ ... Redirection configuration }' \
>  http://g.api.soracom.io/v1/virtual_private_gateways/<VPG-ID>/junction/set_redirection

You can remove Redirection settings with the unsetRedirectionConfiguration method.

Soracom CLI

Inspection

To configure Inspection settings, use the set-inspection command:

soracom vpg set-inspection --vpg-id '<VPG-ID>' --body '{ ... Inspection configuration }' --coverage-type g

You can remove Inspection settings with the unset-inspection command.

Mirroring

To add a mirroring destination, use the create-mirroring-peer command:

soracom vpg create-mirroring-peer --vpg-id '<VPG-ID>' --body '{ ... Mirroring peer configuration }' --coverage-type g

You can modify a mirroring peer with the update-mirroring-peer command, and delete a mirroring peer with the delete-mirroring-peer command.

Redirection

To configure Redirection settings, use the set-redirection command:

soracom vpg set-redirection --vpg-id '<VPG-ID>' --body '{ ... Redirection configuration }' --coverage-type g

You can remove Redirection settings with the unset-redirection command.
