Event + Timer Mode

The Event + Timer mode combines the behavior of Event and Timer modes, sending a message each time the built-in button is clicked or the external I/O is triggered, as well as counting the number of clicks and triggers and sending an additional message at regular intervals reporting the number of clicks and triggers detected during that interval.

Configuration

To configure your button for Event + Timer mode:

Follow the Configuration instructions for configuring Soracom LTE-M Button settings.

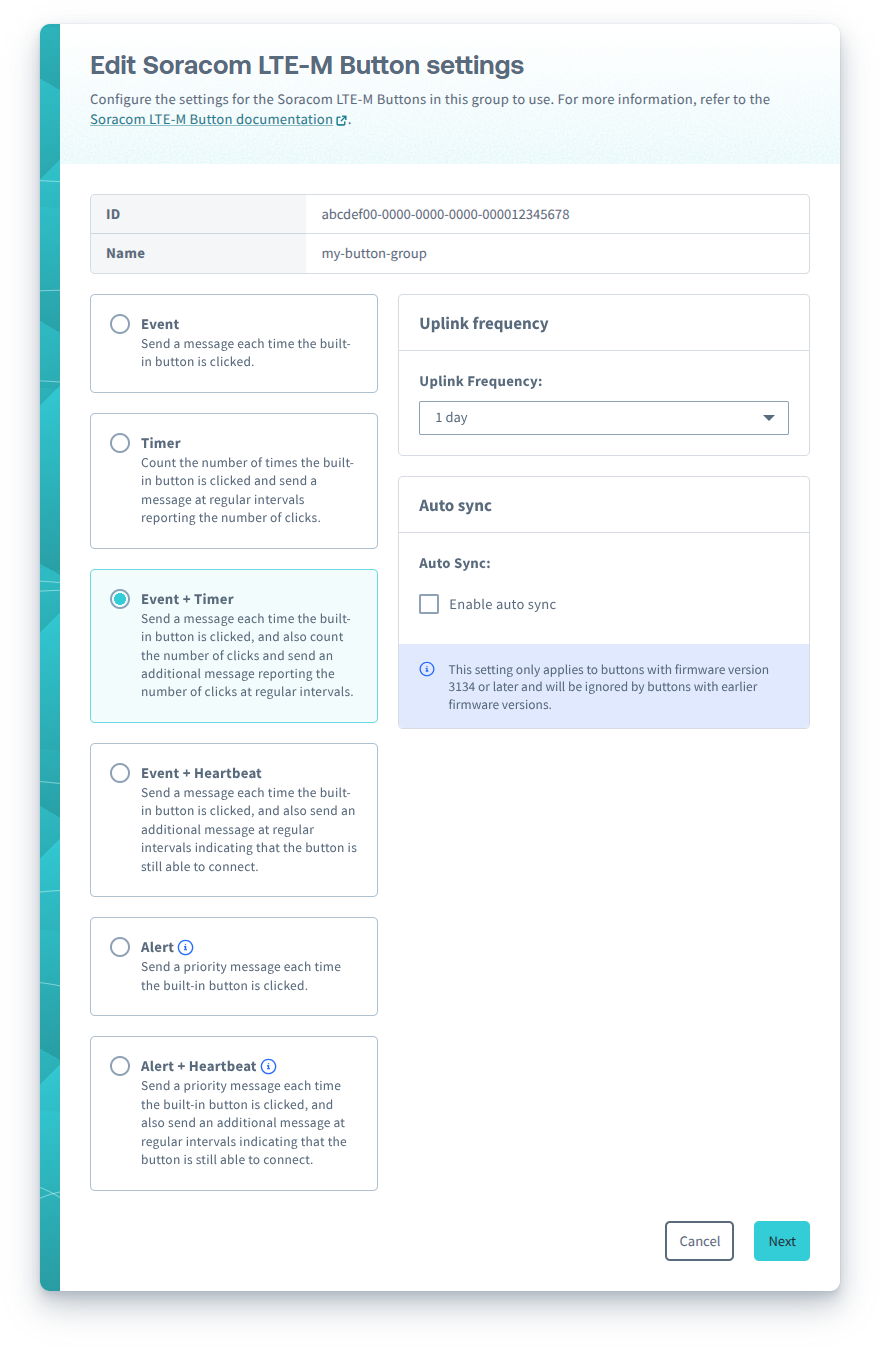

Select the Event + Timer mode option:

You can configure the following options for Event + Timer mode:
- Uplink frequency - The frequency to send Timer messages.
- Auto sync - For buttons with firmware version 3134 or later, automatically sync once a day.
- External I/O mode - Configure the external I/O accessory port:
  - Disabled
  - Edge Detection
  - Pulse Detection
  - Temperature Sensor
- Enable debounce - Enables debouncing for Edge Detection and Pulse Detection external I/O modes to reduce false triggers.

After configuring Soracom LTE-M Button settings, follow the instructions to sync your button.

Messages

When the Soracom LTE-M Button operation mode is configured as Event + Timer, the button will send the following types of messages:

Event message (when the external I/O mode is configured as Edge Detection, Pulse Detection, or disabled), indicating the type of event that triggered the message
Event with Temperature message (when the external I/O mode is configured as Temperature Sensor), indicating the type of event that triggered the message and reporting the measured temperature
Timer message, reporting the number of built-in button clicks and external I/O triggers detected during the configured interval
Status message, reporting the current status and configuration of the button

For more information on the Timer message, refer to the Timer Mode documentation.

Input	Action	External I/O mode
Input	Action	Disabled	Edge Detection	Pulse Detection	Temperature Sensor
Built-in button	Single short click	LED blinks one short green blink: ☀ Increments the short_summary_# counter Sends an Event message with detect type `Single short click`			LED blinks one short green blink: ☀ Increments the short_summary_# counter Sends an Event with Temperature message with detect type `Single short click`
	Double short click	LED blinks two short green blinks: ☀☀ Increments the double_summary_# counter Sends an Event message with detect type `Double short click`			LED blinks two short green blinks: ☀☀ Increments the double_summary_# counter Sends an Event with Temperature message with detect type `Double short click`
	Single long click	LED blinks one long green blink: ☀─── Increments the long_summary_# counter Sends an Event message with detect type `Single long click`			LED blinks one long green blink: ☀─── Increments the long_summary_# counter Sends an Event with Temperature message with detect type `Single long click`
	Extra long click	LED blinks three short green blinks: ☀☀☀ Sends a Status message to report the current status and configuration
2-wire accessory	Connected		LED blinks one short green blink: ☀ Increments the edge_summary_# counter Sends an Event message with detect type `Falling edge`	Starts a timer and waits for the wire to disconnect
2-wire accessory	Disconnected		LED blinks one short green blink: ☀ Increments the edge_summary_# counter Sends an Event message with detect type `Rising edge`	Calculates the timer and performs the same action as the built-in button
Internal timer	Uplink frequency	Sends a Timer message			Reads the temperature sensor^1 Sends a Timer message*
Internal timer	Every 24 hours	If Auto sync is enabled, sends a Status message to report the current status and configuration

^{*1 - The temperature sensor is measured at the end of each summary interval.}

Input	Action	External I/O mode
Built-in button	Single short click	Increments the short_summary_# counter Sends an Event message with detect type `Single short click`	Increments the short_summary_# counter Sends an Event with Temperature message with detect type `Single short click`
Double short click	Increments the double_summary_# counter Sends an Event message with detect type `Double short click`	Increments the double_summary_# counter Sends an Event with Temperature message with detect type `Double short click`
Single long click	Increments the long_summary_# counter Sends an Event message with detect type `Single long click`	Increments the long_summary_# counter Sends an Event with Temperature message with detect type `Single long click`
Extra long click	LED blinks one short green blink: ☀ Sends a Status message to report the current status and configuration
2-wire accessory	Connected		Increments the edge_summary_# counter Sends an Event message with detect type `Falling edge`	Starts a timer and waits for the wire to disconnect
Disconnected	Increments the edge_summary_# counter Sends an Event message with detect type `Rising edge`	Calculates the timer and performs the same action as the built-in button
Internal timer	Uplink frequency	Sends a Timer message	Reads the temperature sensor^1 Sends a Timer message*

LED indicator

While the button is sending an Event message, Event with Temperature message, Timer message, or Status message, the LED will blink to indicate the progress:

LED blink pattern	Description	Progress
☀──☀──☀── (repeating)	Slow green blinking	The button is connecting to a network
☀☀☀☀ (repeating)	Fast green blinking	The button has connected and is sending the message
☀────────	Extra long green blink	The button successfully sent the message
☀────────	Extra long red blink	An error occurred

If the button has trouble sending a message, it will try one more time before giving up. For more information, refer to the Troubleshooting section.

Refer to the LED Reference for descriptions of additional indicators.

Canceling a message

If you want to cancel an Event message, Event with Temperature message, or Status message, simply click the built-in button once while the button is connecting to a network.

The Timer message cannot be canceled.
