Sending SSH Commands to a Device

With Remote Command, you can use the Soracom User Console and the Soracom API to send SSH commands to devices that use IoT SIMs and verify their results.

You can use this feature with either a password-based setup or a key-pair setup.

From the User Console with Password

  1. Login to the User Console. From the Menu, open the SIM Management screen.

  2. From the list of subscribers, click the for the SIM you want to send a SSH command to.

  3. Click the Actions menu, then select Send Command via SSH.

  4. Configure the following settings:

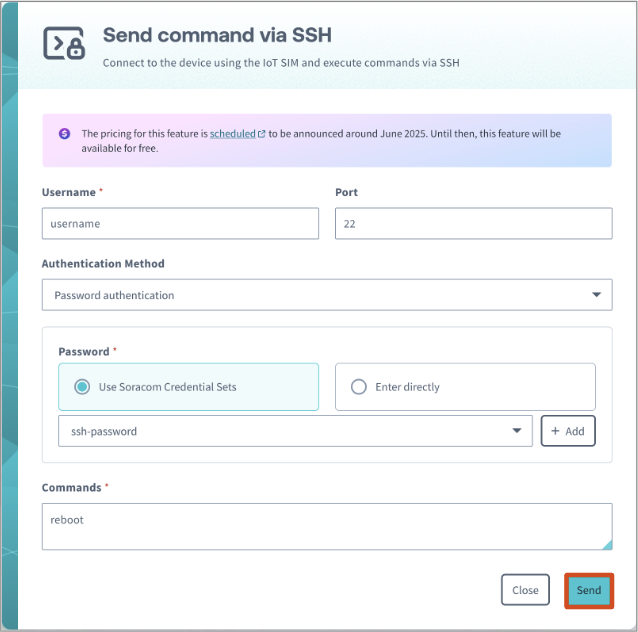

    Send Command via SSH with password

Setting Description
Username Enter the username for SSH login to the device. Example: pi
Port Enter the port number that the device accepts SSH connections on. Example: 22
Authentication Method If you want to use password authentication to send commands via SSH, select Password authentication.
Password Select the password to use for authentication.
- To use a password registered in the Credential Sets, select Use Soracom Credential Sets and choose the password.
- To newly register and use a password in the Credential Sets, click Add to register the password.
- To enter a password directly, select Enter directly and input the password.
Command Enter the command to execute on the device. Example: reboot
  1. Click Send.

    The command will be sent to the device. Once the device finishes executing the command, the result will be displayed.

From the User Console with SSH Key Authentication

To use this feature, ensure that you've prepared an SSH key pair.

  1. Login to the User Console. From the Menu, open the SIM Management screen.

  2. From the list of subscribers, click the for the SIM you want to send a SSH command to.

  3. Click the Actions menu, then select Send Command via SSH.

  4. Configure the following settings:

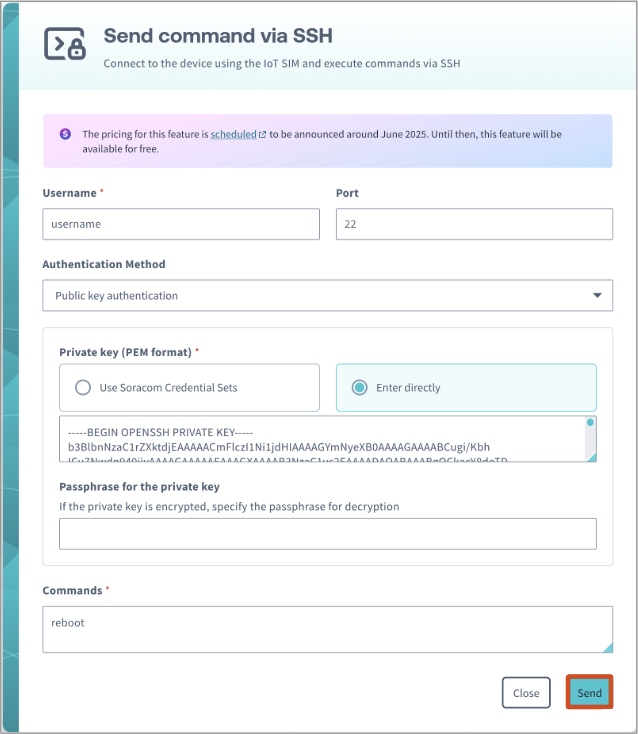

    Send Command via SSH with public key

Item Description
Username Enter the username for SSH login to the device. Example: pi
Port Enter the port number that the device accepts SSH connections on. Example: 22
Authentication Method If you want to use public key authentication to send commands via SSH, select Public key authentication.
Private Key (PEM format) Select the private key to use for authentication.
- To use a private key registered in the Credential Sets, select Use Soracom Credential Sets and choose the private key.
- To newly register and use a private key in the Credential Sets, click Add to register the private key.
- To use a private key saved on your local computer, select Enter directly and input the private key.
Private Key Passphrase If the private key is protected with a passphrase, enter the passphrase.
Command Enter the command to execute on the device. Example: echo 'Hello world!'; ls -l
  1. Click Send.

    The command will be sent to the device. Once the device finishes executing the command, the result will be displayed.

From the Soracom API

To access the Soracom API, first use the auth API to obtain an API Key and Token. Refer to the API Usage Guide for instructions on how to use the API Key and Token in API requests.

Then, use the sendDownlinkSsh API to send an SSH command to an IoT SIM using its SIM ID:

curl -X POST \
|  -H 'X-Soracom-API-Key: <MY-API-KEY>' \
|  -H 'X-Soracom-Token: <MY-TOKEN>' \
|  -H 'Content-Type: application/json' \
|  -d '{
|        "username": "username",
|        "port": 22,
|        "authentication": {
|           "type": "publickey",
|           "key": "-----BEGIN OPENSSH PRIVATE KEY-----\nb3BlbnNzaC1rZXktdjEAAAAACmFlczI1Ni1jdHIAAAAGYmNyeXB0AAAAGAAAABCugi/Kbh\nICu7Nwdn....",
|        },
|        "command": "reboot",
|      }' \
|  https://g.api.soracom.io/v1/sims/<SIM_ID>/downlink/ssh

Preparing an SSH Key Pair (Public Key Authentication Only)

Before sending SSH commands via Remote Command, you'll need to prepare an SSH key pair:

Here, we will create public and private key pair files to use for SSH login and save them as follows:

  1. Create a public/private key pair on your PC from a Linux environment.

    ssh-keygen
    >Generating public/private ed25519 key pair...
    >Enter file in which to save the key (/home/xxxx/.ssh/id_ed25519):

    Follow the instructions on the screen to create a public key (id_ed25519.pub) and private key (id_ed25519).

    If you set a passphrase, specify it when creating a Soracom authentication.

  2. Copy the public key, id_ed25519.pub, to your target device.

    Copy the public key using any method you like. From now on, the target device, user name will be referred to as ${user}. Example: pi

    • If you are copying from an environment where you can use Linux ssh-copy-id, etc., to the target device that can be accessed by an IP address (e.g., 192.168.xxx.xxx), run the following command:
    ssh-copy-id -i /PATH/TO/PUBLIC_KEY ${user}@192.168.xxx.xxx
    • If you are copying from an environment where you can use Linux ssh-copy-id to a target device that uses an IoT SIM, you can create an on-demand remote access in Napter even if you are in a remote location by executing the following command. For more information about on-demand remote access in Napter, see Soracom Napter documentation.

    Replace xxxx and xxx-xxx-xxx-xxx.napter.soracom.io with the port number and domain issued by Napter's on-demand remote access.

    ssh-copy-id -i /PATH/TO/PUBLIC_KEY -p xxxx ${user}@xxx-xxx-xxx-xxx.napter.soracom.io
    • Similarly, use scp if you are copying from an environment where Windows is available, run a command like the following:
    scp -P xxxxx /PATH/TO/PUBLIC_KEY ${user}@xxx-xxx-xxx-xxx.napter.soracom.io:/home/${user}/

    In this case, you will also need to access the target device via ssh and move the contents of id_ed25519.pub to the appropriate location.

    ssh -p xxxxx xxx-xxx-xxx-xxx.napter.soracom.io -l ${user}
    |mkdir -p ~/.ssh
    |cat ~/id_ed25519.pub >> ~/.ssh/authorized_keys
    |chmod 600 ~/.ssh/authorized_keys
    |rm ~/id_ed25519.pub
  3. Verify that you can log in to the target device using the SSH key pair.

    ssh -p xxxxx xxx-xxx-xxx-xxx.napter.soracom.io -l ${user}

    If you set a passphrase for your key pair, you can log in by entering the passphrase.

  4. Register the private key in the Soracom User Console.

    Specifically, register the credentials on the Register credentials screen of the Credentials Store as follows. For information on how to display this screen, see Creating a Credential Set.

    • Authentication Information ID: Enter a name to identify the credentials. For example: Private-Key.
    • Type: Select Private Key (PEM).
    • Private key (PEM): Copy the contents of the private key (id_ed25519).

    Screenshot of Private Key registration
