Soracom Air for Cellular

Batch Processing

The Soracom User Console provides an easy-to-use graphical interface for all SIM management tasks, such as registration, activation and deactivation, speed class control, and configuring various SIM settings. Most of these tasks can also be performed on multiple SIMs at the same time, reducing operational overhead.

However, in some cases you may wish to perform a task for hundreds or thousands of SIMs in an automated fashion, without navigating through the User Console to find specific SIMs.

The Batch Processing feature allows you to repeat specific tasks for a large number of SIMs in an automated manner, with built-in options and tools for handling errors and reviewing the results of each task, right from the User Console.

Overview

Batch processing consists of the following components:

• Task - A singular action to perform on a specific SIM.
• Batch Job - A list of tasks to process.
• Batch Groups - A folder-like structure for organizing multiple batch jobs.

Each batch job (or job) consists of a CSV file that you provide which contains the list of tasks to perform, with one task per line. For example, when using batch processing to activate a large number of SIMs, the CSV file should contain a list the SIMs you want to activate (one SIM per line), and the task of activating a SIM will be repeated for each line in the CSV.

Batch groups provide a simple way to organize multiple jobs. For example, if your organization manufactures devices in lots and you need to repeat a series of batch processing jobs for each lot, you can organize jobs by lot number using batch groups in order to easily check that each lot has been processed.

Compared to Multiple Selection

Most SIM management tasks can be performed from the User Console by simply selecting multiple SIMs and choosing the action to perform. However, certain tasks take additional parameters, such name when renaming a SIM, or group ID when moving a SIM to a different group:

• With multiple selection, the same parameter will be applied to all selected SIMs.
• With batch processing, the parameter can be customized for each SIM.

For example, you can prepare a CSV containing a list of SIMs, and for each SIM specify a different name to apply.

Furthermore, when performing tasks using multiple selection, you must keep the User Console open, whereas with batch processing, a job will continue processing in the background even if you sign out or close the User Console.

Compared to Programmatic Usage

You can also automate SIM management tasks by writing your own script (such as Python, NodeJS, or shell script) which uses the Soracom API or Soracom CLI directly.

When writing your own script, you can use all available Soracom APIs and implement additional logic according to your business requirements, such as conditionally activating or configuring SIMs based on a manufacturing or deployment report. However, this requires familiarity with scripting, including rate limiting and error handling, as well as additional setup for Soracom API or CLI authentication.

On the other hand, batch processing does not require technical knowledge or additional Soracom API or CLI set up, and you don't need to worry about API rate limits. However, batch processing only supports a limited number of APIs.

Available Actions

The following API actions are currently supported:

• Sim:activateSim - Change a SIM's status to Active.
• Sim:deactivateSim - Change a SIM's status to Inactive.
• Sim:suspendSim - Change a SIM's status to Suspended.
• Sim:setSimToStandby - Change a SIM's status to Standby.
• Sim:putSimTags - Add or update a SIM's tags.
• Sim:setSimGroup - Add or move a SIM to a group.
• Sim:unsetSimGroup - Remove a SIM from a group.
• VirtualPrivateGateway:putVirtualPrivateGatewayIpAddressMapEntry - Assign a specific IP address to a SIM when it connects to a Virtual Private Gateway.

Limitations

The following limitations apply:

• Each batch job is limited to a single API action, which will be repeated for each line of a CSV file.
• Each batch job is limited to a maximum of 10,000 tasks.
• Only one batch job per API action can be created and processed at a time.^*1
• Once a batch job has been created, it will begin processing and cannot be canceled or aborted.^*2
• Each task in a batch job will be processed one after another, from top-to-bottom of the CSV file.
• Each task in a batch job will be processed using the permissions of the user that created the batch job.^*3
• The time needed to process a batch job may vary depending on Soracom's system load.
• Batch jobs will remain visible in your account for 32 days and will be automatically deleted afterwards.

^{*1 - For example, if you create a batch job to activate SIMs, you cannot create another batch job for activating SIMs until the first job finishes. However, you can create a batch job for a different API action during that time.
*2 - To avoid issues, ensure that the CSV file is formatted correctly and contains the correct task settings you require. If appropriate, you can use the option to abort a job if it encounters an error to avoid having to wait for a job to finish.
*3 - The user creating the batch job should have permission to access the API action of the batch job.}

Creating a Batch Group

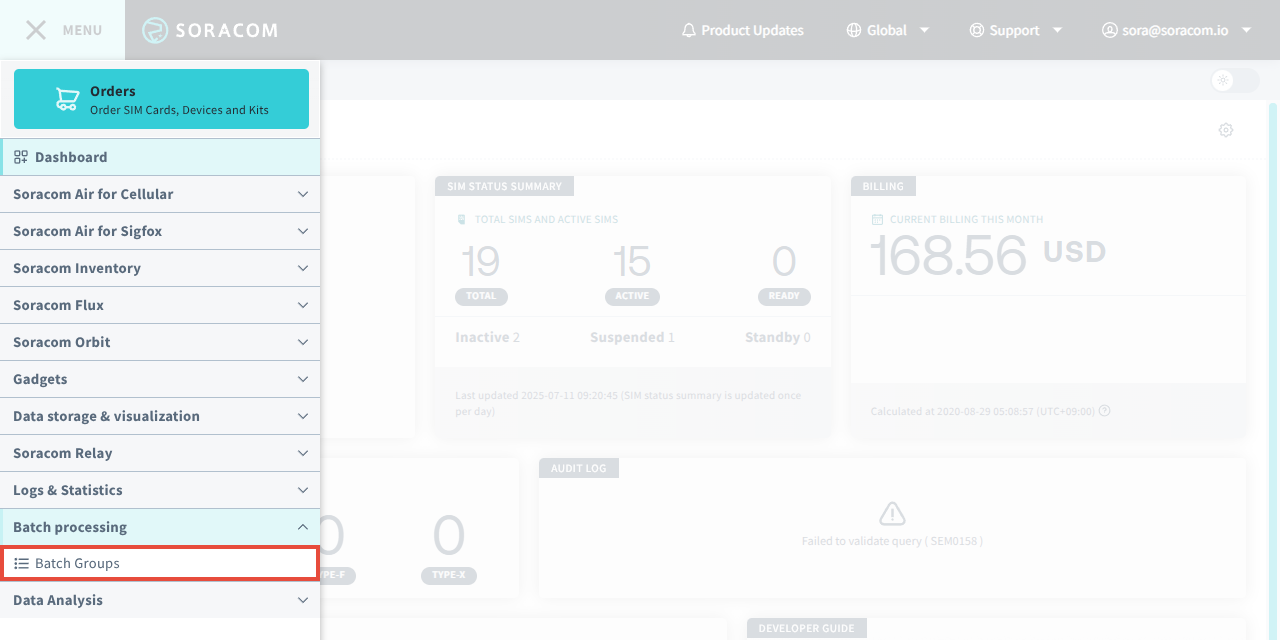

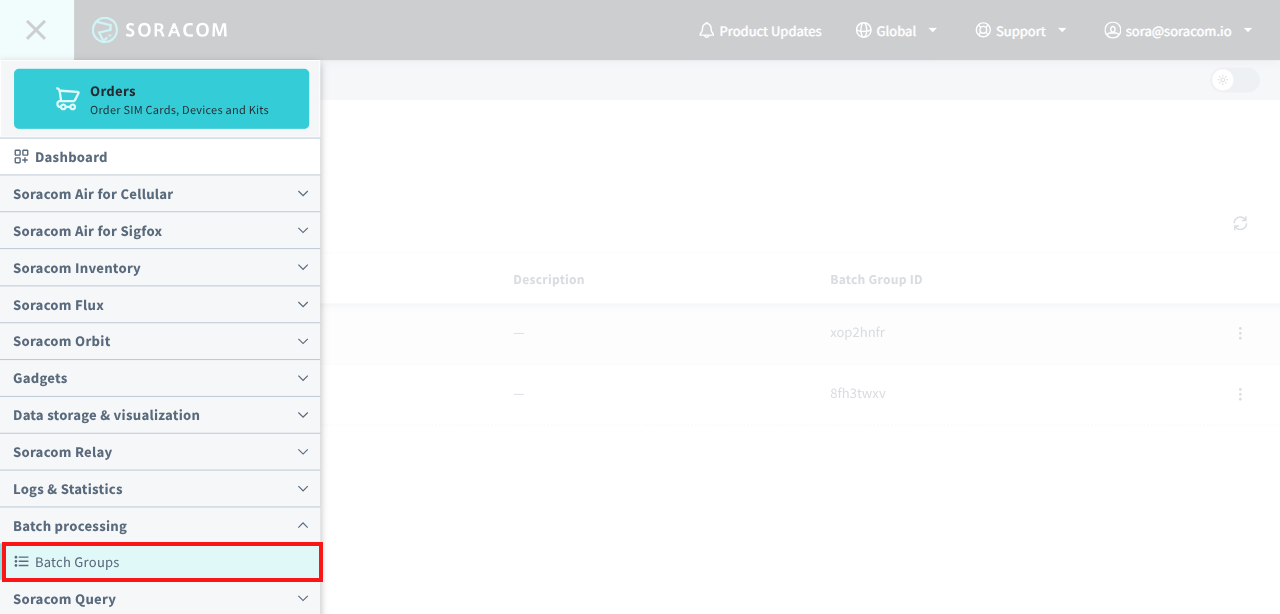

1. Login to the User Console. From the Menu, expand Batch Processing and select Batch Groups.

   https://console.soracom.io

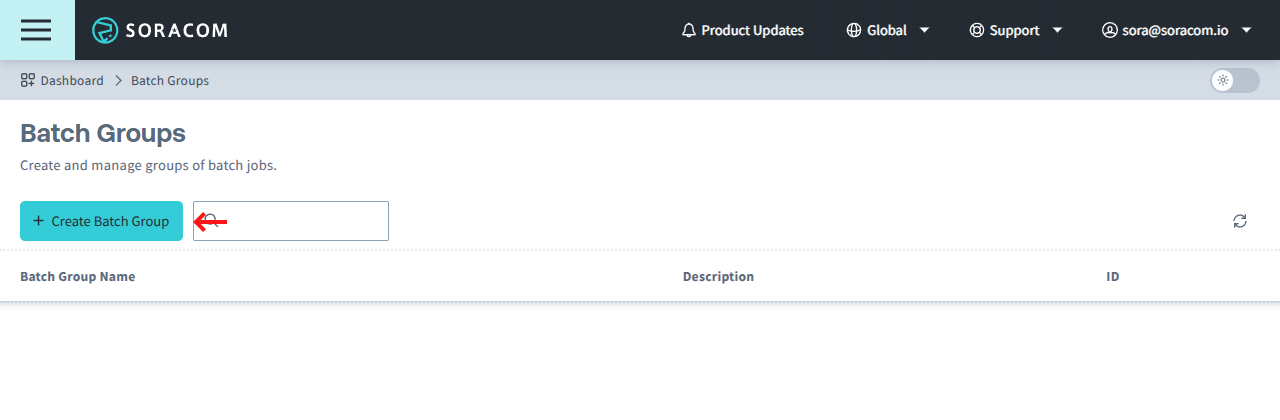

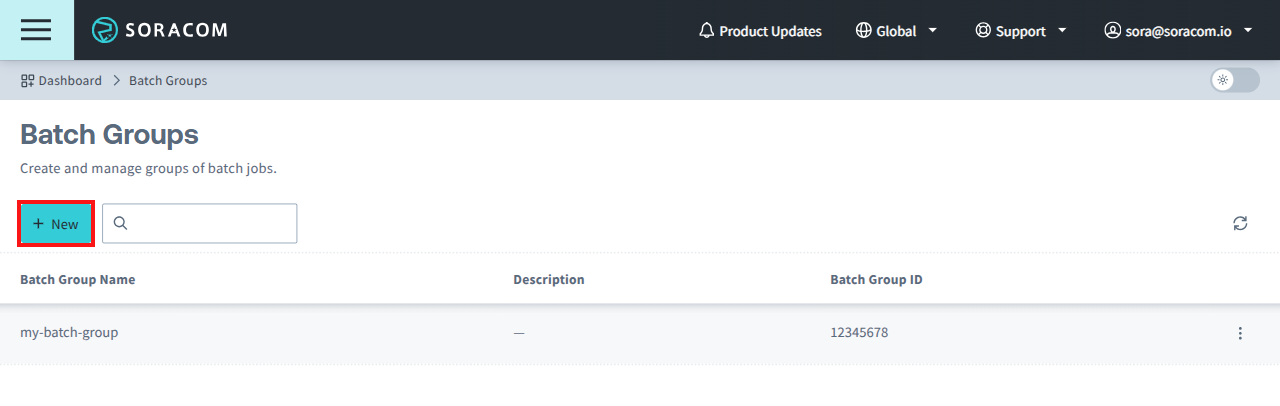

2. Click the Create Batch Group button.

   https://console.soracom.io

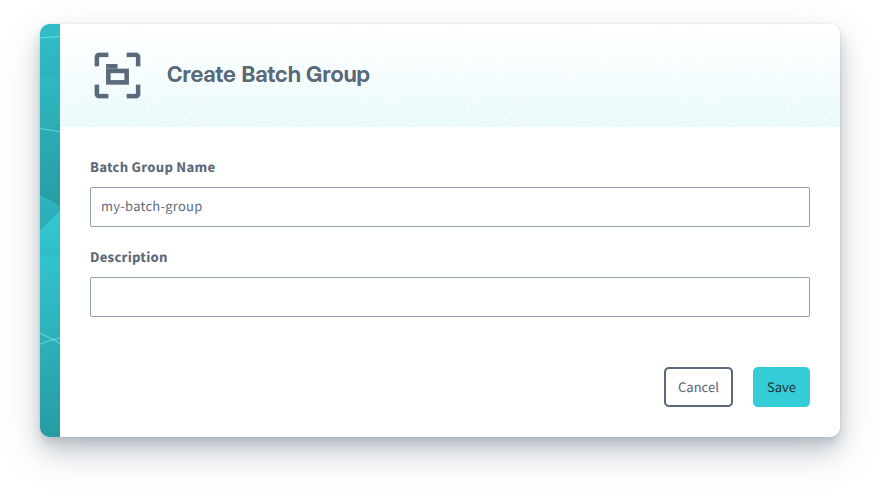

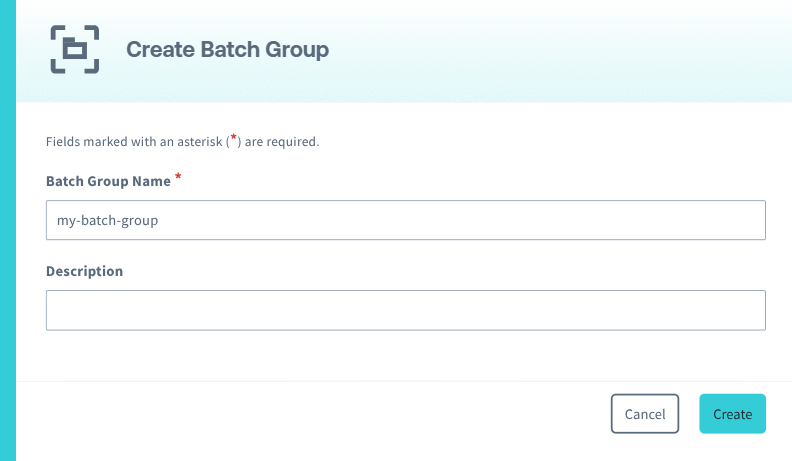

3. Enter a name for your batch group and optionally a description, then click Save.



The batch group will appear in the list of batch groups.

Deleting a Batch Group

To delete a batch group:

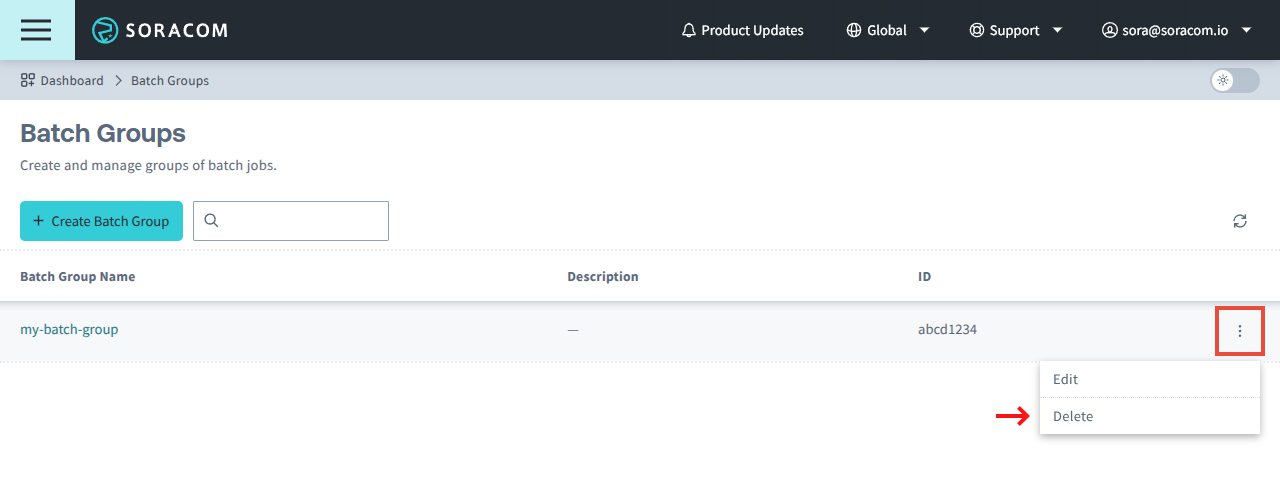

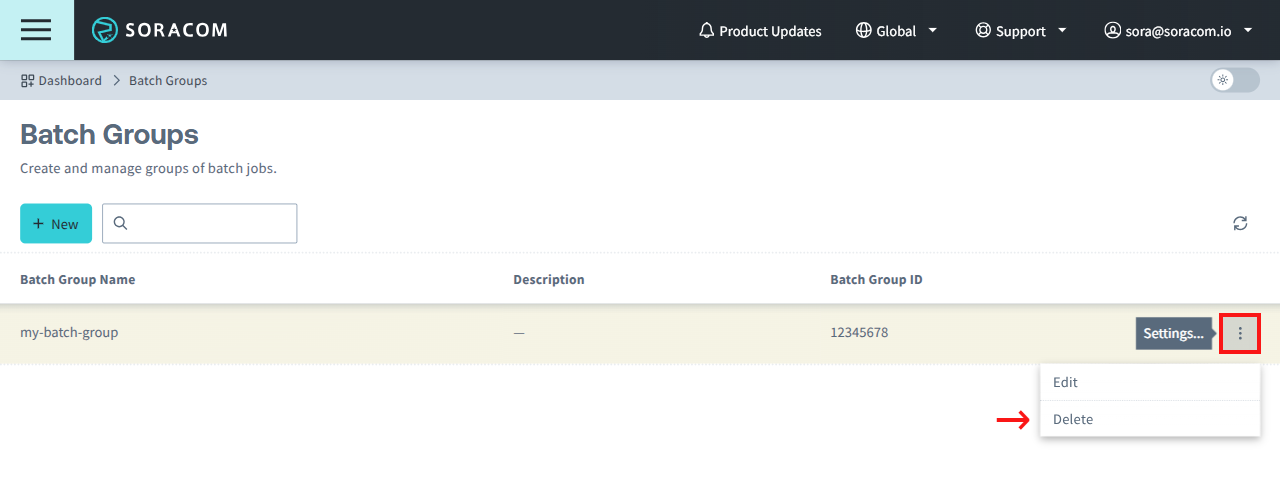

1. From the list of batch groups, click the menu for the batch group you want to delete, then click Delete.

   https://console.soracom.io

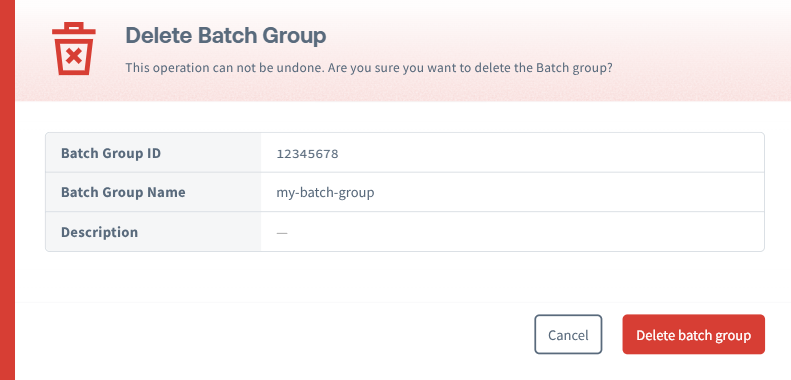

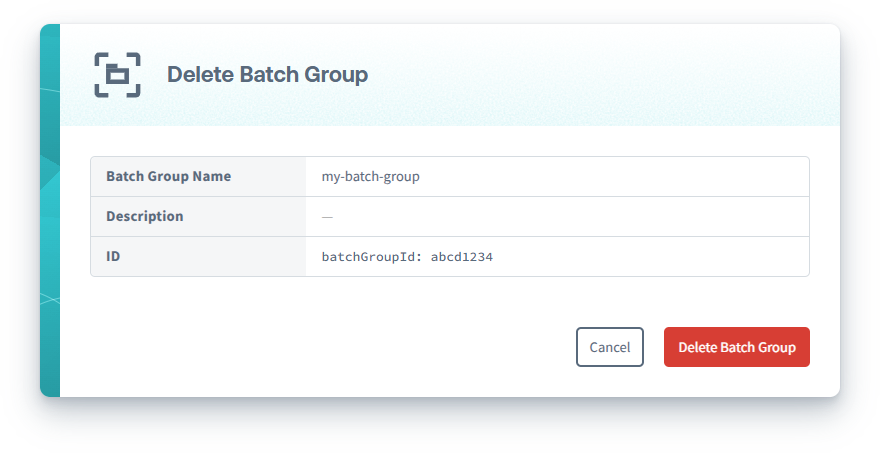

2. Confirm deleting the batch group.



Creating a Job

1. Login to the User Console. From the Menu, expand Batch Processing and select Batch Groups.

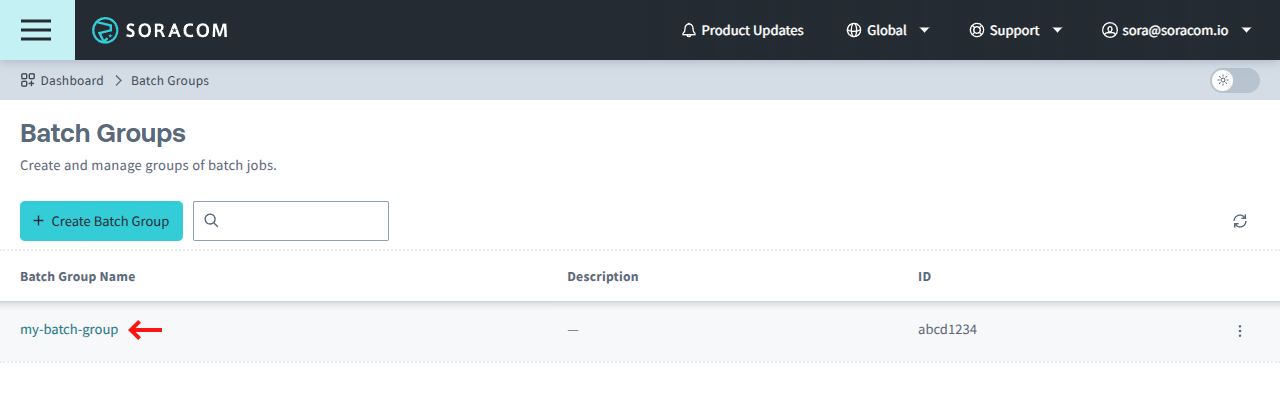

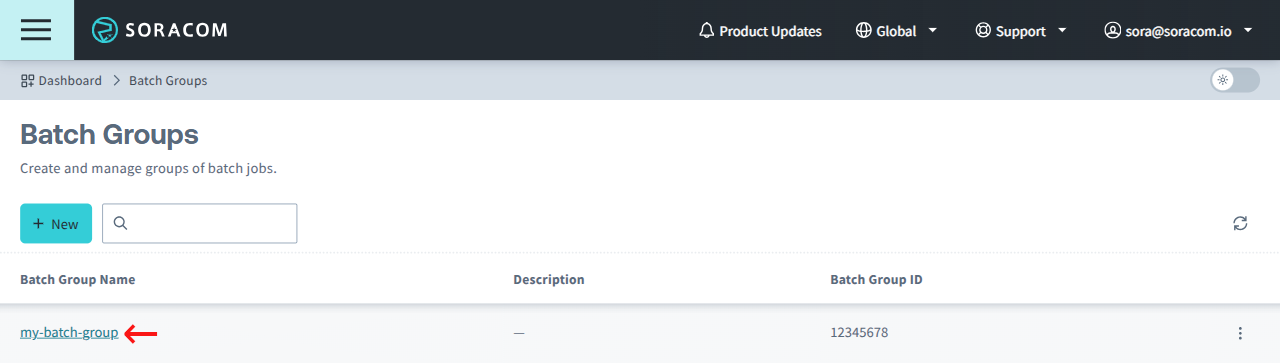

2. Select a batch group where you want to create a new job.

   https://console.soracom.io

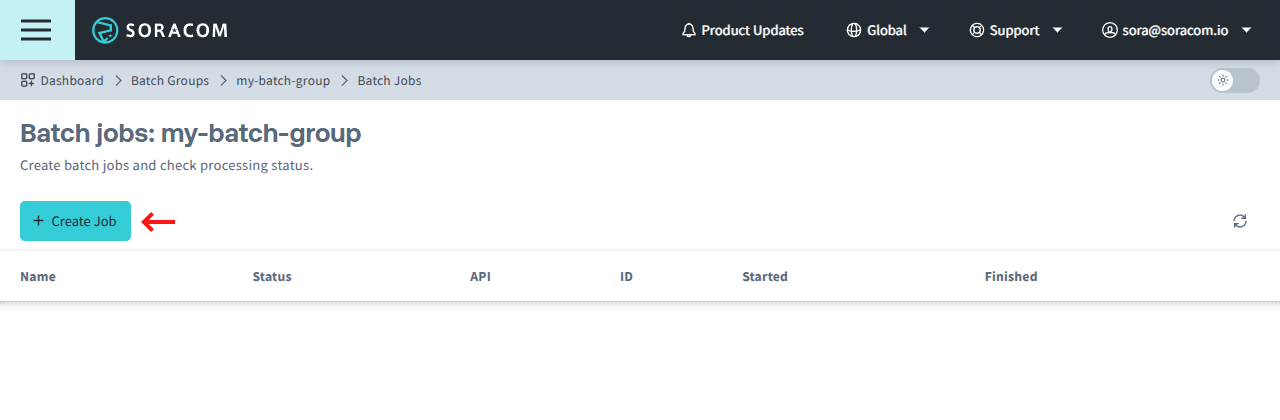

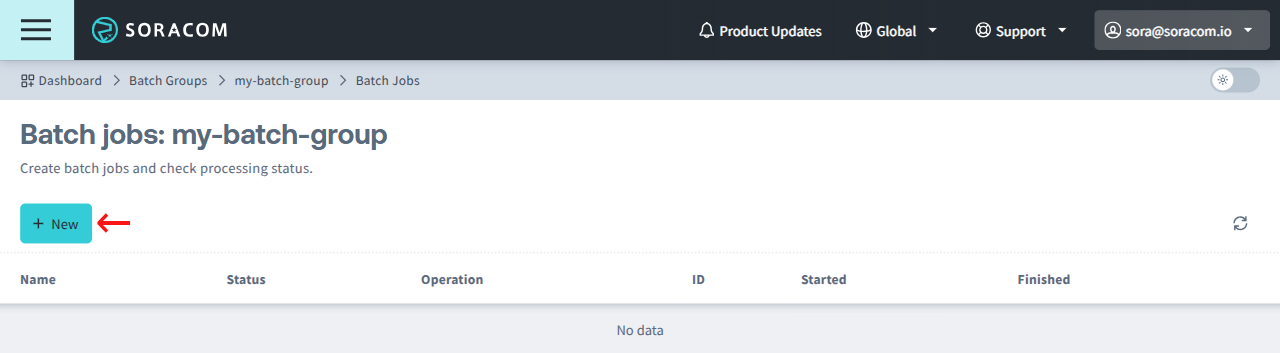

3. Click the Create Job button.

   https://console.soracom.io

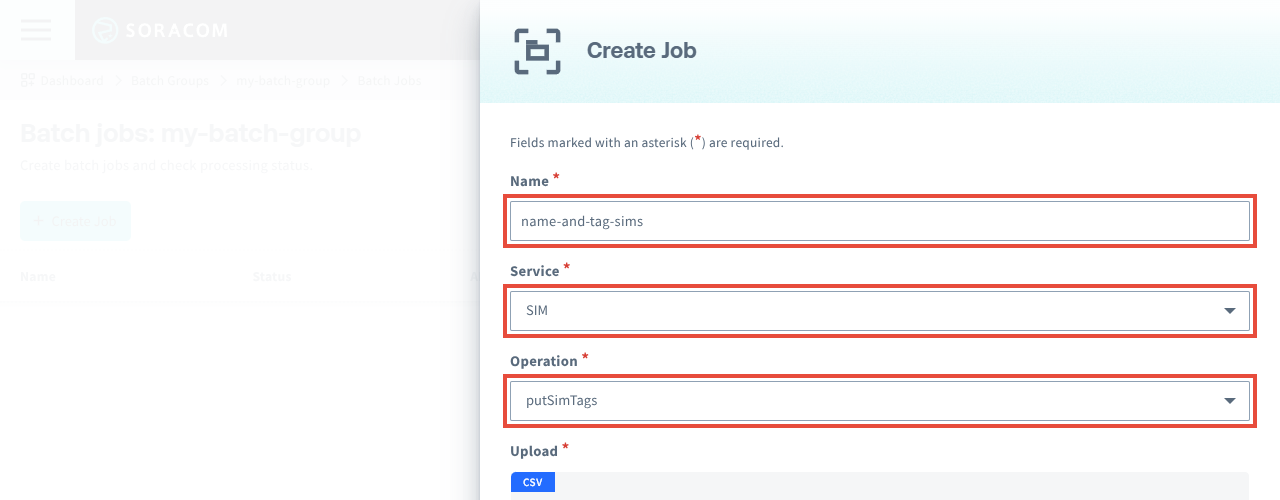

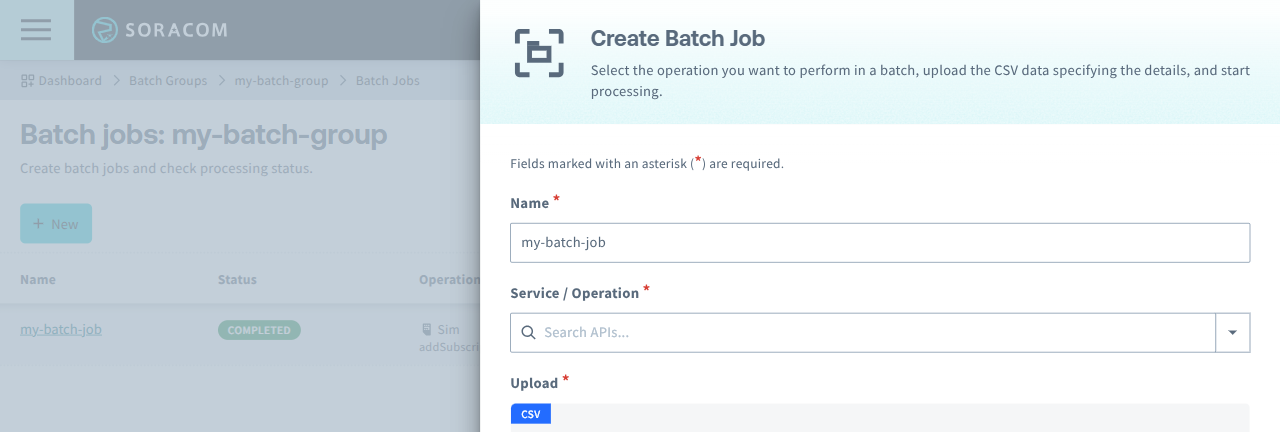

4. In the Create Job panel, enter the following batch job settings:

   https://console.soracom.io



   • Name - A unique name to identify the batch job.
   • Service and Operation - The API action for the batch job to perform.

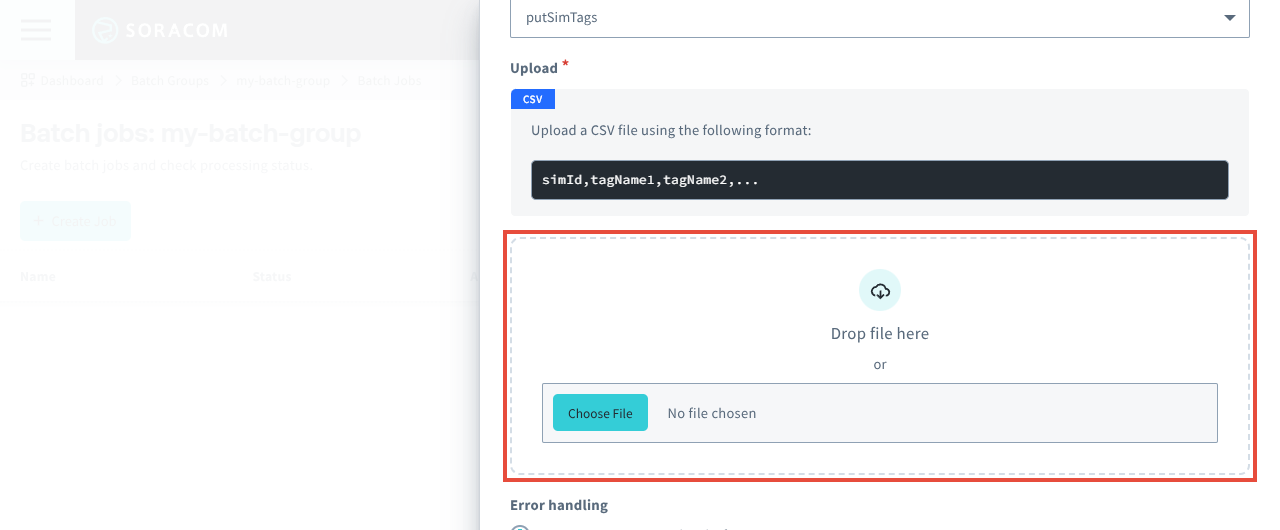

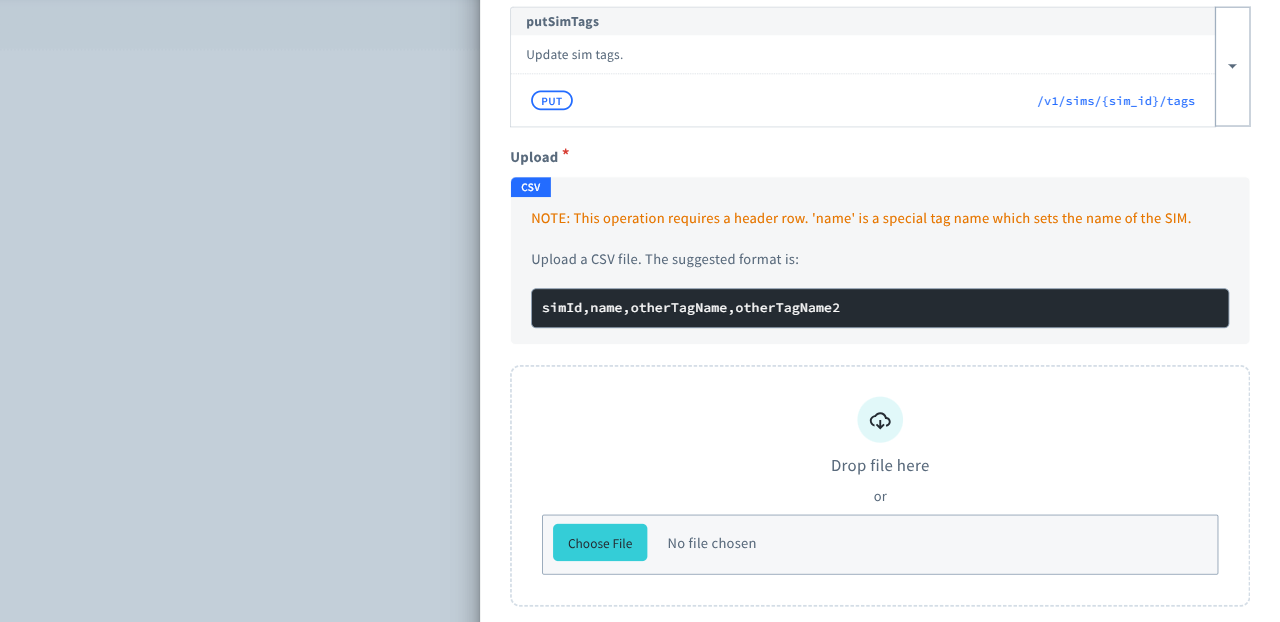

5. Next, in the Upload section, select a CSV file containing the task details. See CSV Format Examples below.

   https://console.soracom.io

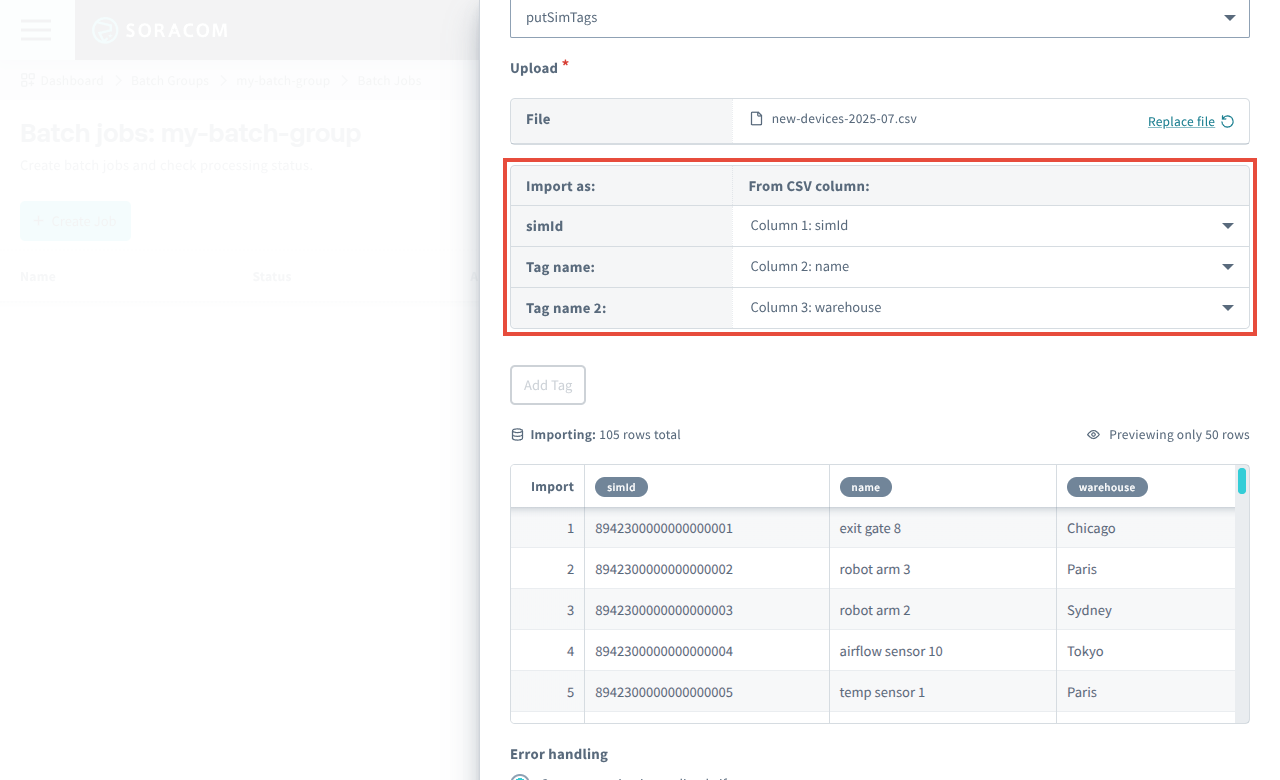

6. The User Console will check the CSV file and attempt to match its contents with the required CSV format. A table will appear below showing a preview of the data that will be used for the batch job, allowing you to confirm that the task settings are correct.

   https://console.soracom.io



   If needed, use the dropdown menus to select which columns in the CSV file correspond to the required batch job fields.

   When using the Sim:putSimTags API, select each of the columns that you want added or updated as tags for each SIM.

   Tags will be set according to the name of the column in the CSV file. For example, if your CSV file contains a column called Location, selecting it will add or update a Location tag for each SIM.

   To add more tags, click the Add Tag button. To remove a tag, select the Don't use column option.

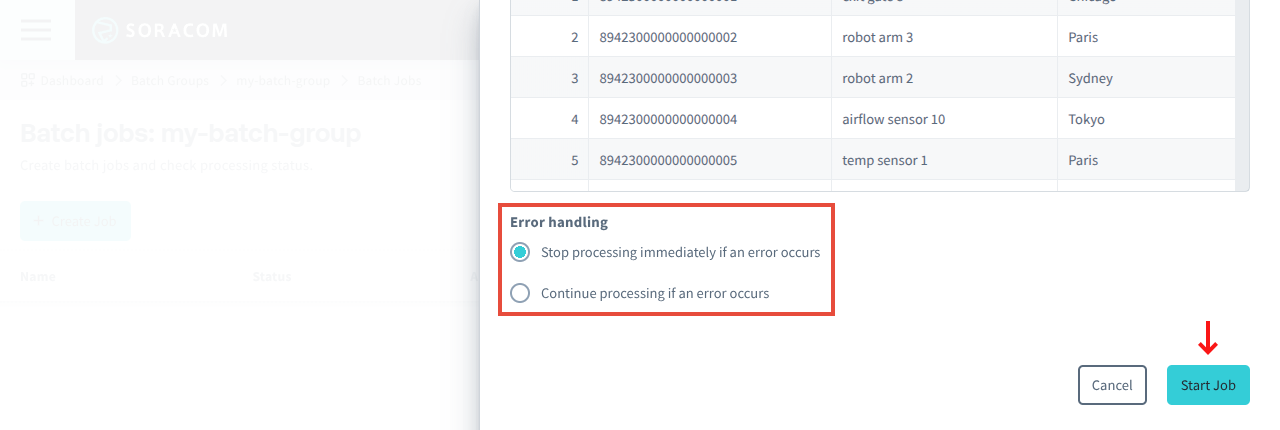

7. Finally, select an Error handling option for what the batch job should do if an error occurs.

   https://console.soracom.io



   After confirming the job settings, then click the Start Job button to create the batch job and begin processing.

   Once a job is created, it cannot be canceled or aborted. To avoid issues, ensure that the CSV file is formatted correctly and contains the correct task settings you require.

The job will be added to the list of batch jobs.

Checking a Job Status

1. Login to the User Console. From the Menu, expand Batch Processing and select Batch Groups.

2. Click the batch group containing the job you want to check.

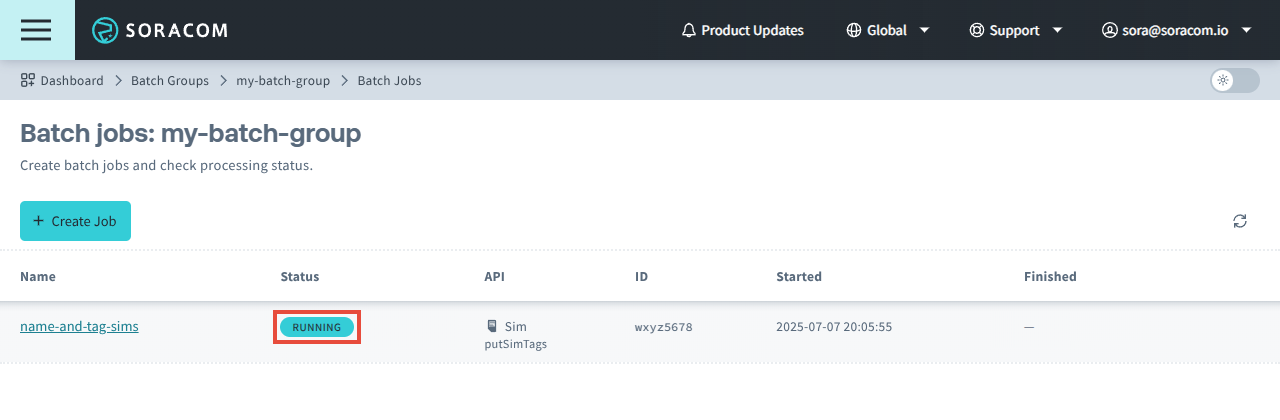

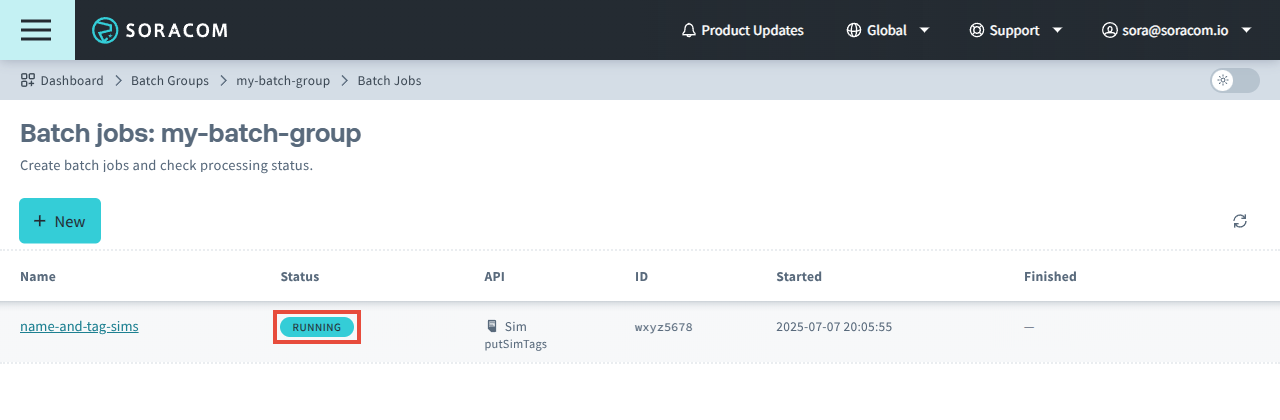

   Jobs in the batch group will be listed along with their current processing status.

   https://console.soracom.io



Each job will have one of the following statuses:

Batch Job Status	Description
Pending	The batch job is currently queued and waiting to start.
Running	The batch job is currently in progress.
Completed	The batch job finished successfully without any errors.
Failed	The batch job finished but an error occurred with one or more tasks.
Aborted	An error occurred and remaining tasks were skipped.

To view additional details for a specific job:

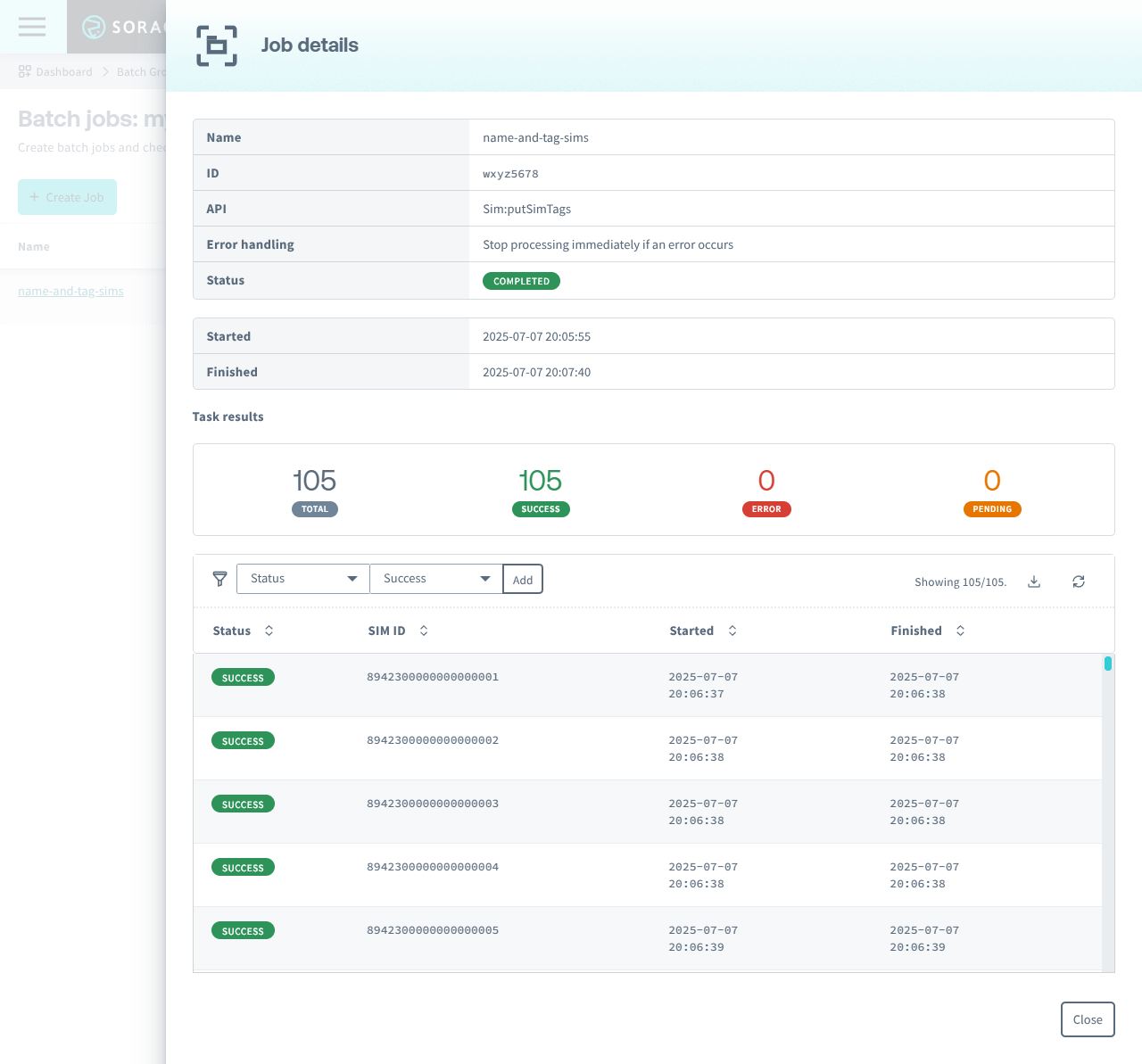

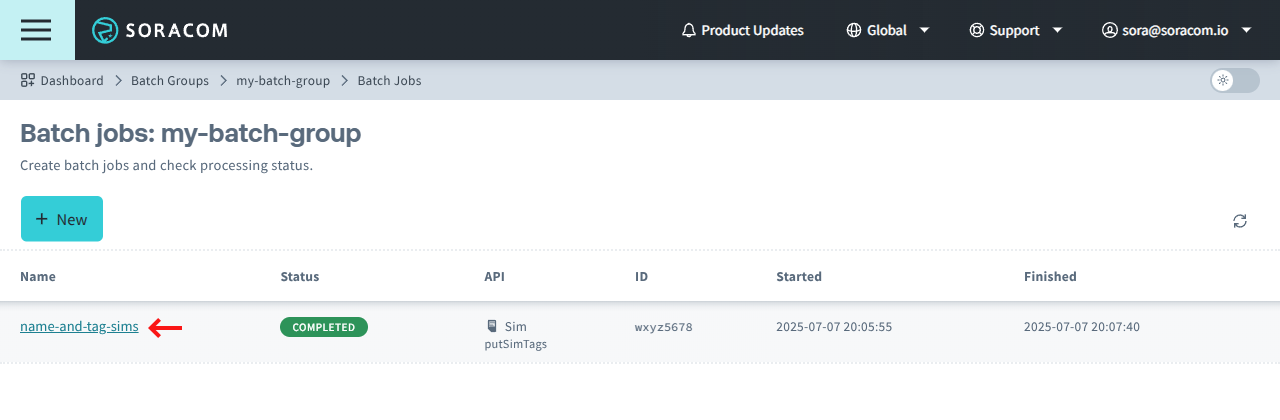

1. Click the name of the job you want to check.

   https://console.soracom.io

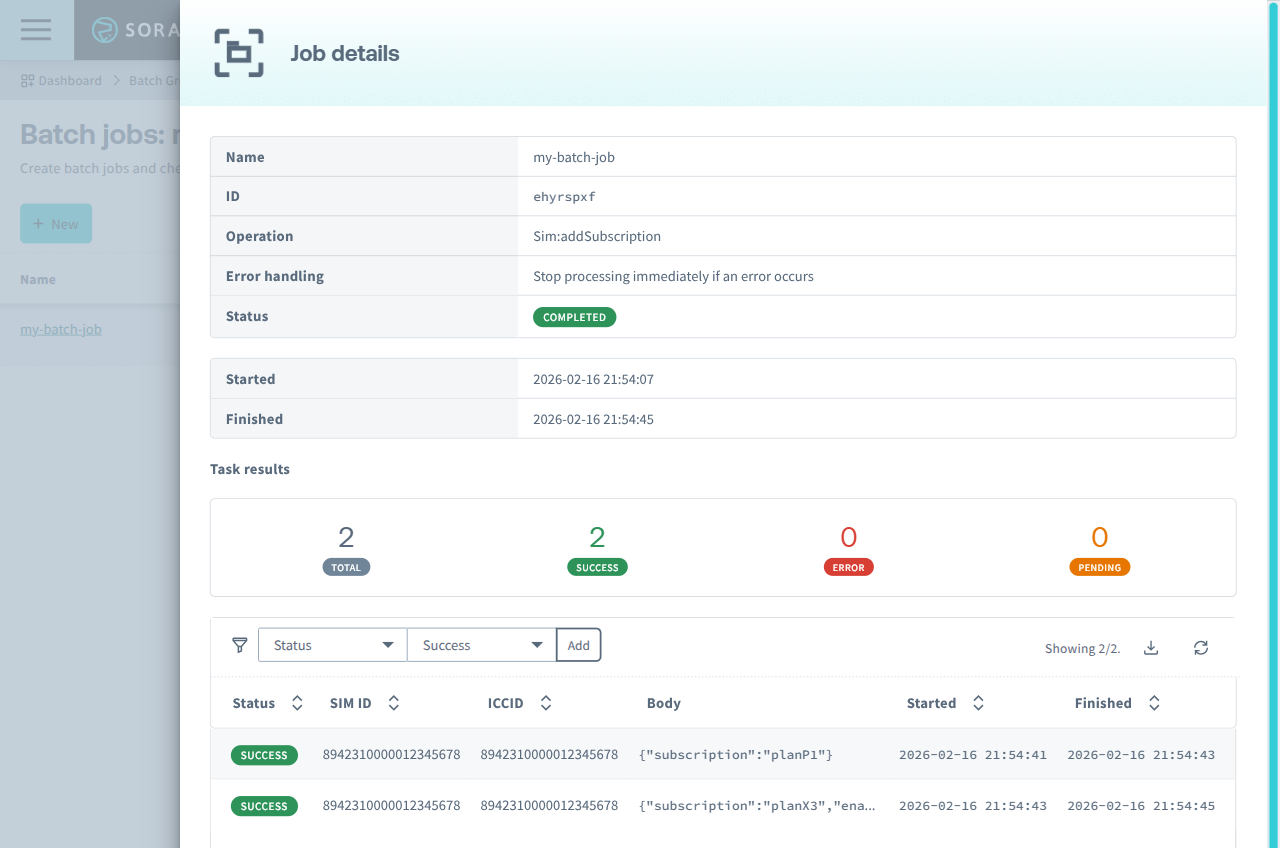

   Tasks in the job will be listed along with their current processing status:

   https://console.soracom.io



Each task will have one of the following statuses:

Task Status	Description
Pending	The task has not been performed yet.
Success	The task completed successfully.
Error	An error occurred while performing the task.

For convenience, you can filter the list of tasks for a specific SIM to confirm if the task completed successfully. You can also filter the list of tasks by a specific task status in order download a corresponding CSV file for record keeping, or to create a subsequent job.

CSV Format Examples

SIM ID

To create a batch processing job to activate, deactivate, suspend, or set SIMs to standby, or to remove SIMs from their current group, prepare a CSV like this:

simId
8942300000011111111
8942300000022222222
8942300000033333333

Where:

• simId is the SIM ID of each SIM

SIM ID and Tags

To create a batch processing job to add or update SIM tags (including SIM name), prepare a CSV like this:

simId,name,tag1,tag2
8942300000011111111,my-sim-1,aaa,xxx
8942300000022222222,my-sim-2,bbb,yyy
8942300000033333333,my-sim-3,ccc,zzz

Where:

• simId is the SIM ID of each SIM
• name, tag1, tag2 and so on are the tags to add or update
• my-sim-1, aaa, xxx and so on are the values to set for each tag specified above

SIM ID and Group ID

To create a batch processing job to add or move SIMs to a group, prepare a CSV like this:

simId,groupId
8942300000011111111,abcdef00-0000-0000-0000-000011111111
8942300000022222222,abcdef00-0000-0000-0000-000011111111
8942300000033333333,abcdef00-0000-0000-0000-000022222222

Where:

• simId is the SIM ID of each SIM
• groupId is the ID of the group that the SIM should be added or moved to

VPG ID, IP Address, and Key

To create a batch processing job to assign specific IP addresses to SIMs when they connect to a VPG, prepare a CSV like this:

vpgId,ipAddress,key
abcdef00-0000-0000-0000-000011111111,10.0.0.111,295050011111111
abcdef00-0000-0000-0000-000011111111,10.0.0.112,295050022222222
abcdef00-0000-0000-0000-000011111111,10.0.0.113,295050033333333

Where:

• vpgId is the ID of the Virtual Private Gateway where you want to assign device IP addresses
• ipAddress is the IP address you want to assign to a SIM
• key is the IMSI of the SIM
