Soracom Air for Cellular

Local Info Report

Local Info Report is currently available as a beta release. Functionality may be subject to change.

Local Info Report is a feature that allows you to retrieve device information directly from a device by using a Java applet that is embedded in plan01s, plan01s - LDV, plan-NA1, plan-US, planX3, and planX3-EU SIMs. Unlike the basic network-provided SIM details that are available on the User Console or through the Soracom API or Soracom CLI. The Local Info Report is able to detail information about the SIM and device status, such as: ICCID, IMSI, MSISDN, IMEI, Location, and Battery level values (if supported by your device).

Requirements

In order to use Local Info Report, your IoT SIM must be:

Requesting a Report

Requesting a Local Info Report will incur an MT SMS fee. Refer to the Pricing & Fee Schedule for more information.

Information about base stations (Cell ID, Area Code, MCC, MNC, Radio Type) may not be available depending on the subscription, line in use, and other circumstances.

  1. Login to the User Console. From the Menu, open the SIM Management screen.

  2. From the list of subscribers, click the for the SIM you want to view, then click the Details button.

    https://console.soracom.io

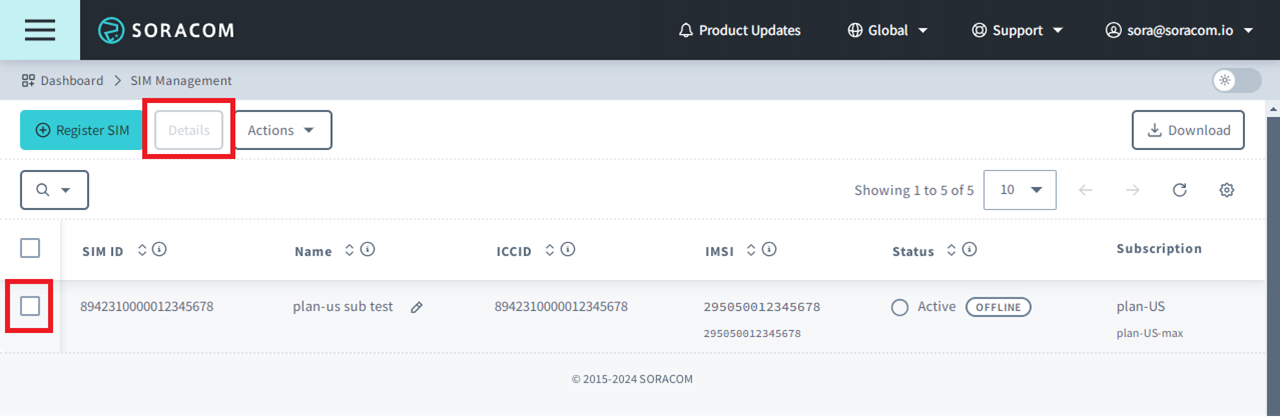

    Subscriber details

  3. From the SIM Details dialog, click the SIM Local Info tab.

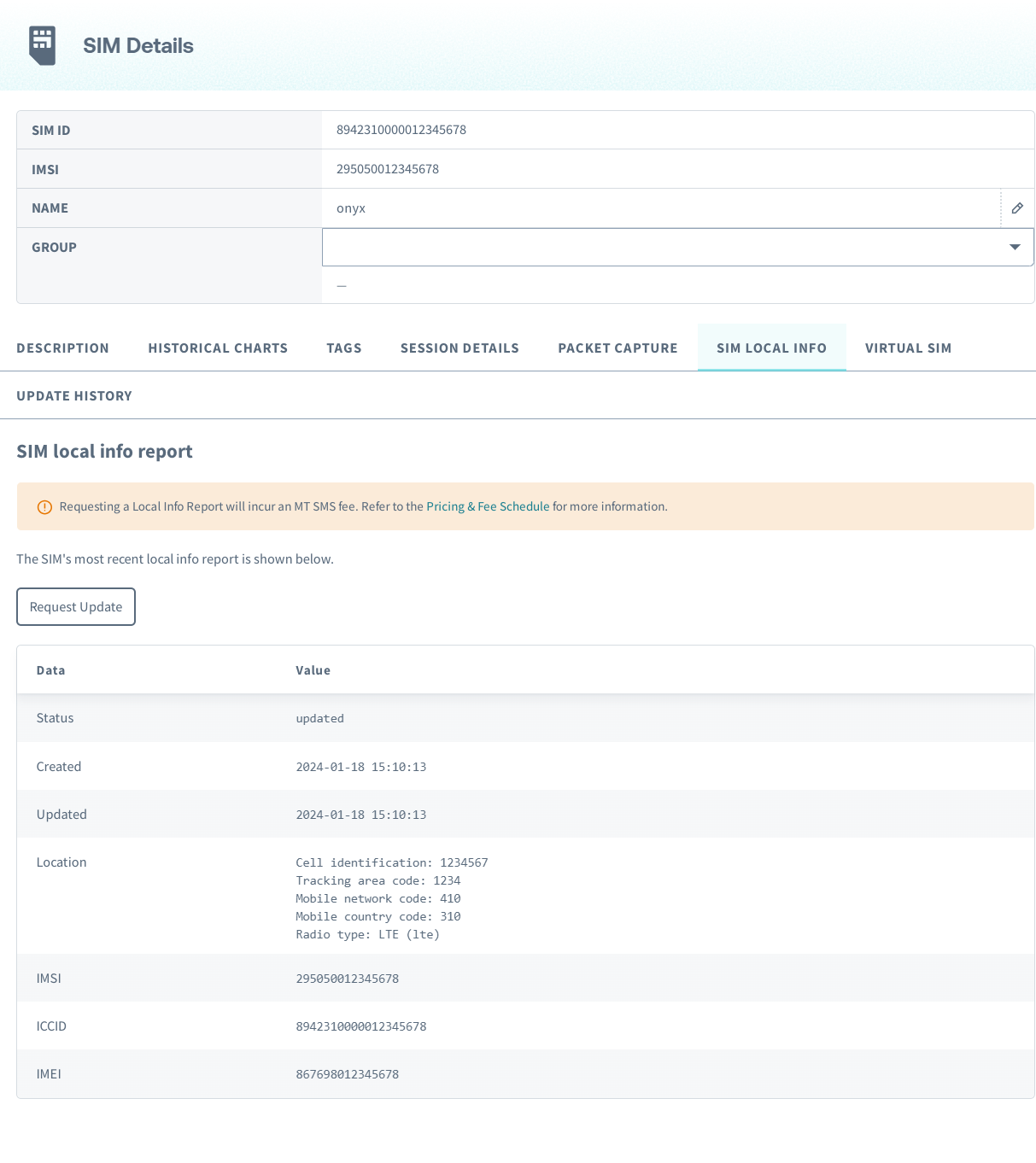

    Local Info

  4. Click the Request Report button. A request will be sent to the SIM to execute the Local Info Report applet.

    The Local Info Report may take up to a minute to generate. After generation, it will be sent to the User Console and will automatically appear once the data is received.

Programmatic Usage

You can also use the Soracom API, Soracom CLI, and Metadata Service to trigger a Local Info Report.

Soracom API

To access the Soracom API, first use the auth API to obtain an API Key and Token. Refer to the API Reference Guide for instructions on how to use the API Key and Token in API requests.

Then, use the reportLocalInfo API to request a Local Info Report from an IoT SIM:

curl -X POST \
>  -H 'X-Soracom-API-Key: <MY-API-KEY>' \
>  -H 'X-Soracom-Token: <MY-TOKEN>' \
>  https://g.api.soracom.io/v1/subscribers/<IMSI>/report_local_info

If the Local Info Report request is successful, you can then retrieve the report using the getSubscriber API:

curl -X GET \
>  -H 'X-Soracom-API-Key: <MY-API-KEY>' \
>  -H 'X-Soracom-Token: <MY-TOKEN>' \
>  https://g.api.soracom.io/v1/subscribers/<IMSI>

The report will be included in the response as a localInfo attribute.

Soracom CLI

To use the Soracom CLI, you must first configure it to authenticate with your account information, authorization key, or SAM user credentials.

Then, run the following command to request a Local Info Report from an IoT SIM:

soracom subscribers report-local-info --imsi <IMSI> --coverage-type g

If the Local Info Report request is successful, you can then retrieve the report using this command:

soracom subscribers get --imsi <IMSI> --coverage-type g

Metadata Service

The Metadata Service allows an Air SIM device to access and configure its own settings without the need for authentication. For more information, refer to the Metadata Service documentation.

Since an IoT SIM device should typically be able to access its own data locally, it's unlikely that you would need to use the Local Info Report function. However, as the Local Info Report API endpoint is within the /subscribers/<IMSI> API scope, you can still request a report if needed.

Use the reportLocalInfo API to request a Local Info Report from an IoT SIM:

curl -X POST http://metadata.soracom.io/v1/subscriber/report_local_info

If the Local Info Report request is successful, you can then retrieve the report using the getSubscriber API:

curl http://metadata.soracom.io/v1/subscriber
