Soracom Beam

Sending a GET Request to the HTTPS Test Server

Use Beam's HTTP entry point and Soracom's HTTPS test server to verify how Beam forwards GET requests.

No special setup is required to use the HTTPS test server. In this tutorial, you will add an HTTP entry point configuration and send a GET request from your device.

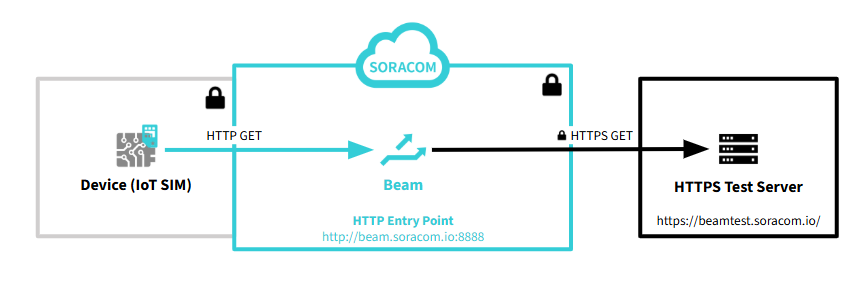

The device sends GET requests to the Beam HTTP entry point (http://beam.soracom.io:8888). The device does not need to know the HTTPS test server URL.

Configuring HTTP Entry Point

Add an HTTP entry point configuration to your SIM group and assign your IoT SIM to the group.

1. In the SIM group settings screen, choose a group, then select Soracom Beam.

   For detailed instructions on how to open the SIM Group settings screen, see Group Settings.

2. Click + Add Configuration and select HTTP entry point.

   The Soracom Beam - HTTP configuration screen appears.

3. Configure the following settings:

   Item	Value
   Configuration name	Enter any name. Example: http over ssl
   Entry point > Path	Enter /.
   Destination > Protocol	Select HTTPS.
   Destination > Host name	Enter beamtest.soracom.io.
   Destination > Port number	Leave blank.
   Destination > Path	Enter /.
   Client Certificate	Leave off.
   Header manipulations > IMSI Header	Turn on.
   Header manipulations > SIM ID Header	Turn on.

   For more information about HTTP entry point settings, see HTTP Entry Point.

4. Click Save.

5. Assign your IoT SIM to the group.

   Beam configuration is now complete.

Sending a GET Request from Your Device

GET requests sent to the HTTP entry point are forwarded through Beam to the HTTPS test server. The test server processes the HTTP headers and returns a response containing the header information.

1. From a device using an IoT SIM configured with the HTTP entry point, send a GET request to the HTTP entry point (http://beam.soracom.io:8888).

   GET request example:

   curl http://beam.soracom.io:8888

   Response:

   {
     "message": "Hello SORACOM Beam Client",
     "headers": {
       "X-Soracom-Imsi": "295050012345678",
       "X-Soracom-Sim-Id": "8942310000012345678"
     },
     "log": {
       "preSharedKey": "",
       "stringToSign": "",
       "calculatedSignature": "",
       "providedSignature": "",
       "trails": null
     }
   }

   If the request does not work as expected, check the error logs. For more information, see Soracom Beam Errors.

Understanding the Response

The response is generated by the HTTPS test server. The message field contains a greeting from the test server. The headers object shows supported Soracom headers that were added by Beam based on the enabled header options in the Header manipulations section of your group configuration. In this example, IMSI and SIM ID headers are enabled. The HTTPS test server returns only predefined Soracom headers and does not include custom headers configured in Beam.

If you turn off the IMSI Header and SIM ID Header options, then send a GET request, the response displays:

{
  "message": "Hello unknown client ...",
  "headers": {},
  "log": {
    "preSharedKey": "",
    "stringToSign": "",
    "calculatedSignature": "",
    "providedSignature": "",
    "trails": null
  }
}

Disabling Beam Configuration

Beam charges are incurred per request. If you are not using Beam, disable the entry point configuration or remove the IoT SIM from the group.

• To stop forwarding requests via Beam, open your SIM group settings and disable or delete the HTTP entry point configuration.
• To remove an IoT SIM from a group, see Removing a Device from a Group.
