Soracom Beam

Establishing an MQTTS Connection with the MQTTS Test Server

Use Beam's MQTT entry point and Soracom's MQTTS test server to verify how Beam forwards MQTT publish and subscribe operations.

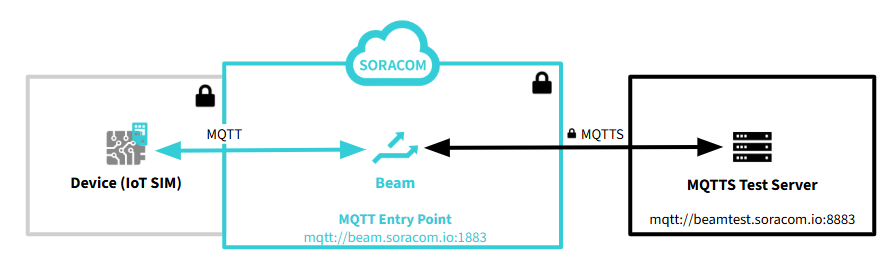

MQTT flow via Beam to MQTTS test server

No special setup is required to use the MQTTS test server. In this tutorial, you will add an MQTT entry point configuration and perform MQTT publish and subscribe operations from your device.

The device connects to the MQTT entry point (beam.soracom.io:1883). The device does not need to know the MQTTS test server URL or credentials.

Configuring MQTT Entry Point

Add an MQTT entry point configuration to your SIM group and assign your IoT SIM to the group.

Beam settings are configured at the group level. For more information about groups, see Groups.

  1. In the SIM group settings screen, choose a group, then select Soracom Beam.

    For detailed instructions on how to open the SIM Group settings screen, see Group Settings.

  2. Click + Add Configuration and select MQTT entry point.

    The Soracom Beam - MQTT configuration screen appears.

  3. Configure the following settings:

    Item Value
    Configuration name Enter any name. Example: MQTT over TLS
    Destination > Type Select Standard.
    Destination > Protocol Select MQTTS.
    Destination > Host name Enter beamtest.soracom.io.
    Destination > Port number Enter 8883.
    Username Enter beamuser.
    Password Enter passwd.

    For more information about MQTT entry point settings, see MQTT Entry Point.

  4. Click Save.

  5. Assign your IoT SIM to the group.

    Beam configuration is now complete.

Publishing Data to a Topic

In this example, your IoT device publishes a message through Beam to the MQTTS test server. An external client subscribes directly to the test server to receive the message.

Roles in this example:

Beam charges are incurred per request. A free tier is available. For more information, see Soracom Beam Pricing.

  1. On any device with an MQTT client, subscribe to a topic using the following settings:

    Item Value
    Host beamtest.soracom.io:8883
    Topic test
    Username beamuser
    Password passwd

    Example using mosquitto_sub:

    mosquitto_sub -h beamtest.soracom.io -p 8883 -t test -u beamuser -P passwd

  2. From a device using an IoT SIM configured with the MQTT entry point, publish a message using the following settings:

    Item Value
    Host beam.soracom.io
    Topic test
    Message Hello World

    Example using mosquitto_pub:

    mosquitto_pub -h beam.soracom.io -p 1883 -t test -m "Hello World"

    The external client displays:

    Hello World

The IoT device using Beam does not need to specify the MQTTS test server username and password. Beam handles the authentication.

Subscribing to a Topic

In this example, your IoT device subscribes through Beam to receive messages from the MQTTS test server. An external client publishes directly to the test server.

Roles in this example:

Beam charges are incurred per request. A free tier is available. For more information, see Soracom Beam Pricing.

  1. From a device using an IoT SIM configured with the MQTT entry point, subscribe to a topic using the following settings:

    Item Value
    Host beam.soracom.io
    Topic test

    Example using mosquitto_sub:

    mosquitto_sub -h beam.soracom.io -p 1883 -t test

  2. On any device with an MQTT client, publish a message using the following settings:

    Item Value
    Host beamtest.soracom.io:8883
    Topic test
    Username beamuser
    Password passwd
    Message Hello World

    Example using mosquitto_pub:

    mosquitto_pub -h beamtest.soracom.io -p 8883 -t test -u beamuser -P passwd -m "Hello World"

    The IoT device displays:

    Hello World

The IoT device using Beam does not need to specify the MQTTS test server username and password. Beam handles the authentication.

Disabling Beam Configuration

Beam charges are incurred per request. If you are not using Beam, disable the entry point configuration or remove the IoT SIM from the group.
