Event + Heartbeat Mode

The Event + Heartbeat mode sends a message each time the built-in button is clicked or the external I/O is triggered, and also sends an additional message at regular intervals indicating that the button is still able to connect.

Configuration

To configure your button for Event + Heartbeat mode:

Follow the Configuration instructions for configuring Soracom LTE-M Button settings.

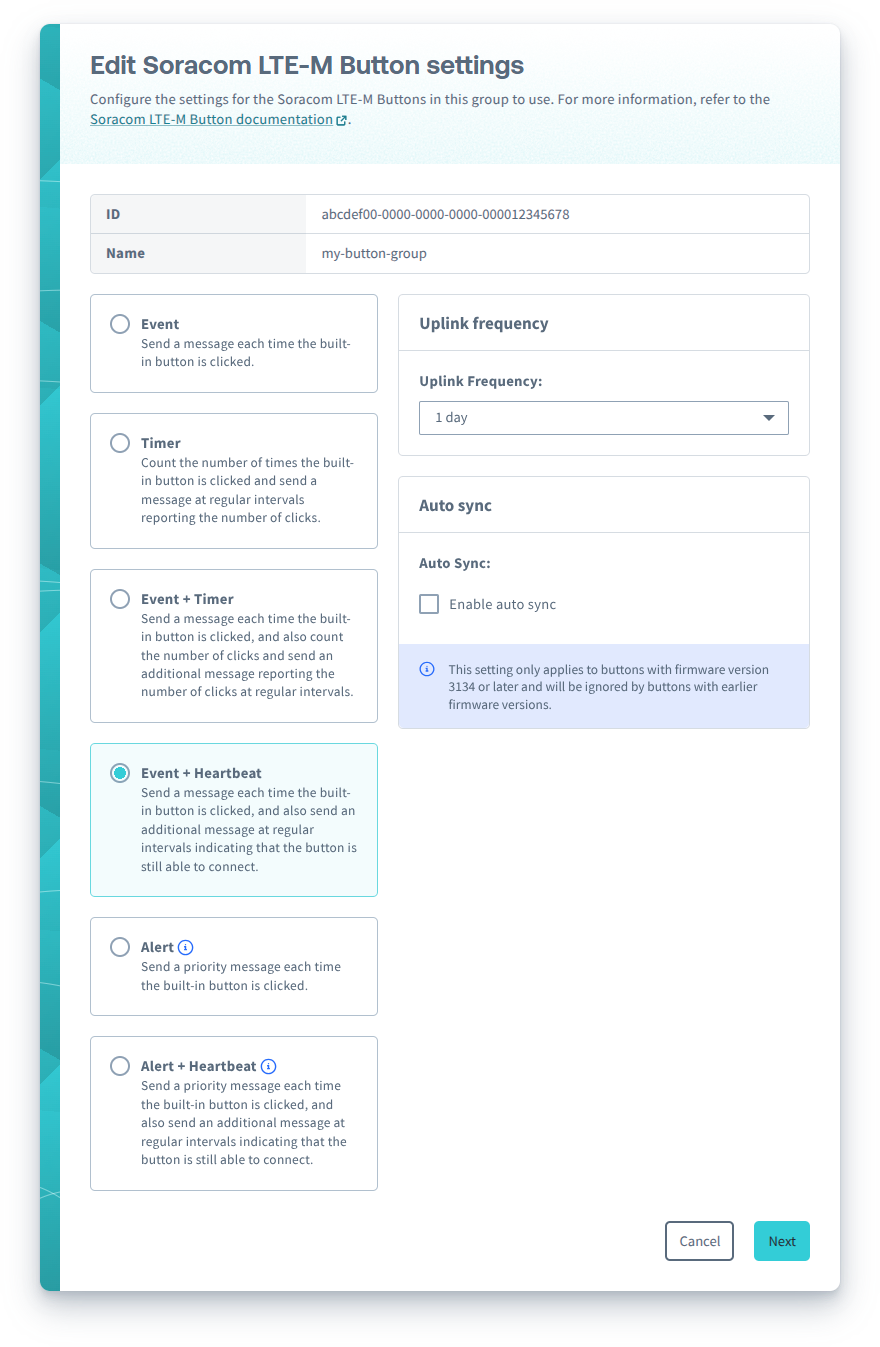

Select the Timer mode option:

You can configure the following options for Event + Heartbeat mode:
- Uplink frequency - The frequency to send Heartbeat messages.
- Auto sync - For buttons with firmware version 3134 or later, automatically sync once a day.
- External I/O mode - Configure the external I/O accessory port:
  - Disabled
  - Edge Detection
  - Pulse Detection
  - Temperature Sensor
- Enable debounce - Enables debouncing for Edge Detection and Pulse Detection external I/O modes to reduce false triggers.

After configuring Soracom LTE-M Button settings, follow the instructions to sync your button.

Messages

When the Soracom LTE-M Button operation mode is configured as Event + Heartbeat, the button will send the following types of messages:

Event message (when the external I/O mode is configured as Edge Detection, Pulse Detection, or disabled), indicating the type of event that triggered the message
Event with Temperature message (when the external I/O mode is configured as Temperature Sensor), indicating the type of event that triggered the message and reporting the measured temperature
Heartbeat message, reporting the current status of the button
Status message, reporting the current status and configuration of the button

Input	Action	External I/O mode
Input	Action	Disabled	Edge Detection	Pulse Detection	Temperature Sensor
Built-in button	Single short click^*1	LED blinks one short green blink: ☀ Sends an Event message with detect type `Single short click`			LED blinks one short green blink: ☀ Sends an Event with Temperature message with detect type `Single short click`
	Double short click	LED blinks two short green blinks: ☀☀ Sends an Event message with detect type `Double short click`			LED blinks two short green blinks: ☀☀ Sends an Event with Temperature message with detect type `Double short click`
	Single long click	LED blinks one long green blink: ☀─── Sends an Event message with detect type `Single long click`			LED blinks one long green blink: ☀─── Sends an Event with Temperature message with detect type `Single long click`
	Extra long click	LED blinks three short green blinks: ☀☀☀ Sends a Status message to report the current status and configuration
2-wire accessory	Connected		LED blinks one short green blink: ☀ Sends an Event message with detect type `Falling edge`	Starts a timer and waits for the wire to disconnect
2-wire accessory	Disconnected		LED blinks one short green blink: ☀ Sends an Event message with detect type `Rising edge`	Calculates the timer and performs the same action as the built-in button
Internal timer	Uplink frequency^*2	Sends a Heartbeat message to report the current status
Internal timer	Every 24 hours	If Auto sync is enabled, sends a Status message to report the current status and configuration

^{*1 - If the button is connecting to the network in order to send a message, a Single short click will cancel the message (does not apply to the Heartbeat message).

*2 - The Uplink frequency is specified when configuring the operation mode as Event + Heartbeat.}

Input	Action	External I/O mode
Built-in button	Single short click^*1	LED blinks one short green blink: ☀ Sends an Event message with detect type `Single short click`	LED blinks one short green blink: ☀ Sends an Event with Temperature message with detect type `Single short click`
Double short click	LED blinks one short green blink: ☀ Sends an Event message with detect type `Double short click`	LED blinks one short green blink: ☀ Sends an Event with Temperature message with detect type `Double short click`
Single long click	LED blinks one short green blink: ☀ Sends an Event message with detect type `Single long click`	LED blinks one short green blink: ☀ Sends an Event with Temperature message with detect type `Single long click`
Extra long click	LED blinks one short green blink: ☀ Sends a Status message to report the current status and configuration
2-wire accessory	Connected		LED blinks one short green blink: ☀ Sends an Event message with detect type `Falling edge`	Starts a timer and waits for the wire to disconnect
Disconnected	LED blinks one short green blink: ☀ Sends an Event message with detect type `Rising edge`	Calculates the timer and performs the same action as the built-in button
Internal timer	Uplink frequency^*2	Sends a Heartbeat message to report the current status

LED indicator

While the button is sending an Event message, Event with Temperature message, Heartbeat message, or Status message, the LED will blink to indicate the progress:

LED blink pattern	Description	Progress
☀──☀──☀── (repeating)	Slow green blinking	The button is connecting to a network
☀☀☀☀ (repeating)	Fast green blinking	The button has connected and is sending the message
☀────────	Extra long green blink	The button successfully sent the message
☀────────	Extra long red blink	An error occurred

If the button has trouble sending a message, it will try one more time before giving up. For more information, refer to the Troubleshooting section.

Refer to the LED Reference for descriptions of additional indicators.

Canceling a message

If you want to cancel an Event message, Event with Temperature message, or Status message, simply click the built-in button once while the button is connecting to a network.

The Heartbeat message cannot be canceled.
