Event Mode

The Event mode sends a message each time the built-in button is clicked or the external I/O is triggered.

Configuration

To configure your button for Event mode:

  1. Follow the Configuration instructions for configuring Soracom LTE-M Button settings.

  2. Select the Event mode option:

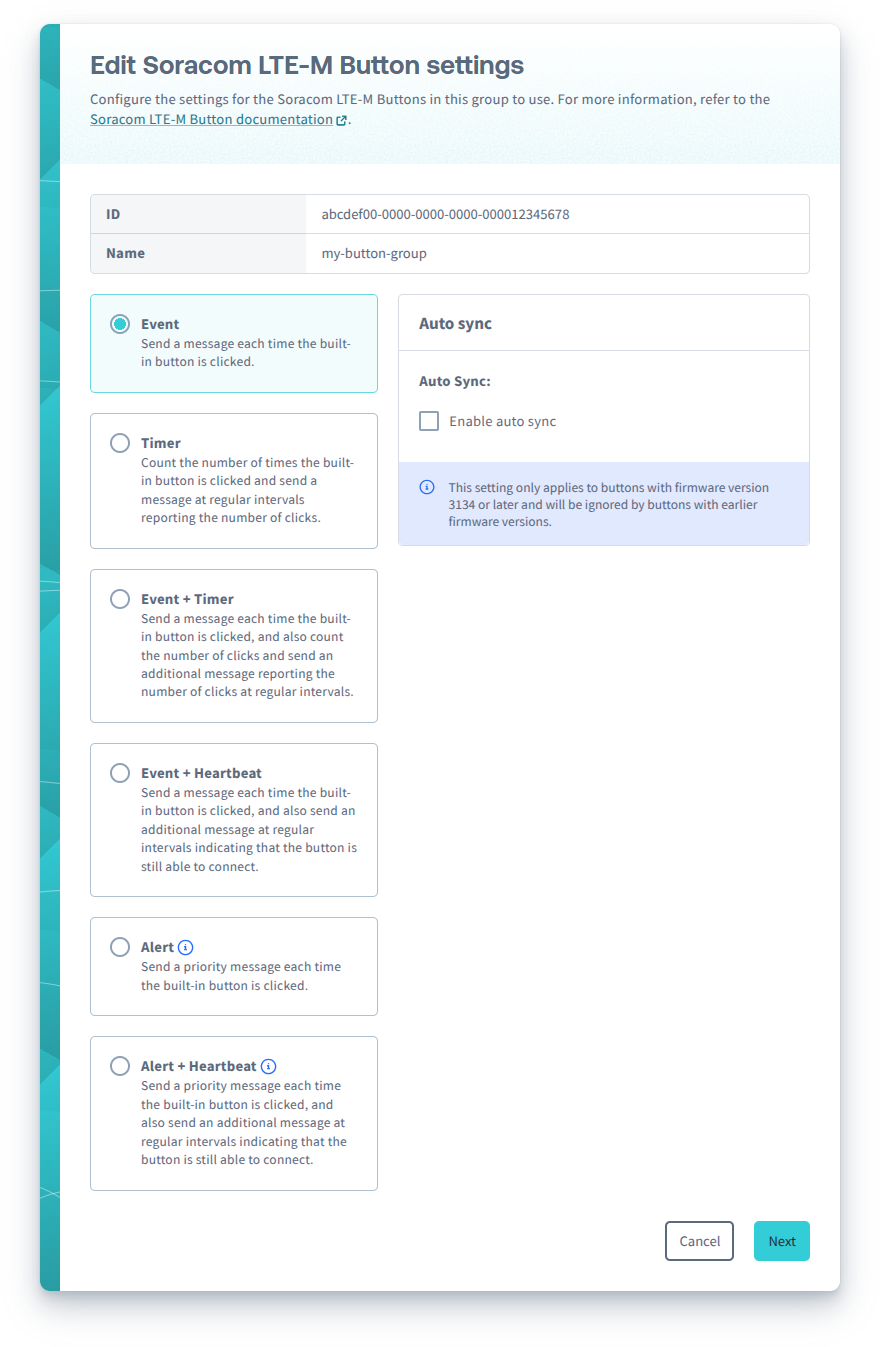

    Selecting the Event mode

    You can configure the following options for Event mode:

    • Auto sync - For buttons with firmware version 3134 or later, automatically sync once a day.
    • External I/O mode - Configure the external I/O accessory port:
    • Enable debounce - Enables debouncing for Edge Detection and Pulse Detection external I/O modes to reduce false triggers.

After configuring Soracom LTE-M Button settings, follow the instructions to sync your button.

Messages

When the Soracom LTE-M Button operation mode is configured as Event, the button will send the following types of messages:

Behavior

Input Action External I/O mode
Disabled

Edge Detection

Pulse Detection

Temperature Sensor

Built-in button Single short click*1
  • LED blinks one short green blink:
  • Sends an Event message with detect type Single short click
  • LED blinks one short green blink:
  • Sends an Event with Temperature message with detect type Single short click
Double short click
  • LED blinks two short green blinks:
  • Sends an Event message with detect type Double short click
  • LED blinks two short green blinks:
  • Sends an Event with Temperature message with detect type Double short click
Single long click
  • LED blinks one long green blink: ☀───
  • Sends an Event message with detect type Single long click
  • LED blinks one long green blink: ☀───
  • Sends an Event with Temperature message with detect type Single long click
Extra long click
  • LED blinks three short green blinks:
  • Sends a Status message to report the current status and configuration
2-wire accessory Connected
  • LED blinks one short green blink:
  • Sends an Event message with detect type Falling edge
  • Starts a timer and waits for the wire to disconnect
Disconnected
  • LED blinks one short green blink:
  • Sends an Event message with detect type Rising edge
  • Calculates the timer and performs the same action as the built-in button
Internal timer Uplink frequency
Every 24 hours
  • If Auto sync is enabled, sends a Status message to report the current status and configuration

*1 - If the button is connecting to the network in order to send a message, a Single short click will cancel the message.

LED indicator

While the button is sending an Event message, Event with Temperature message, or Status message, the LED will blink to indicate the progress:

LED blink pattern Description Progress
☀──☀──☀── (repeating) Slow green blinking The button is connecting to a network
(repeating) Fast green blinking The button has connected and is sending the message
☀──────── Extra long green blink The button successfully sent the message
☀──────── Extra long red blink An error occurred

If the button has trouble sending a message, it will try one more time before giving up. For more information, refer to the Troubleshooting section.

Refer to the LED Reference for descriptions of additional indicators.

Canceling a message

If you want to cancel an Event message, Event with Temperature message, or Status message, simply click the built-in button once while the button is connecting to a network.
